Clean Fill Strainer

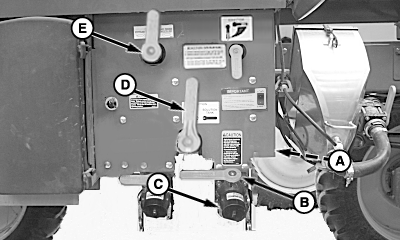

N81781-UN-15JAN09

A - Fill Strainer

B - Quik-Fill Valve

C - Cap

D - Suction Valve

E - Pressure Bypass/Rinse Valve

CAUTION: Spray system can contain hazardous material which can cause serious injury or death to you or others. Wear protective clothing, eyewear, and gloves. Drain solution and clean strainer in an area where people, animals, vegetation and water supply etc., cannot be contaminated.

NOTE: Clean fill strainer (A) periodically.

1. CAUTION: Quik-Fill valve (B) can contain hazardous materials which can poison causing serious injury or death to you or others. Before removing Quik-Fill cap, make sure Quik-Fill valve is turned off.

   Verify Quik-Fill valve is closed.

2. Open lock levers and remove cap (C).

3. Verify suction valve (D) in Closed (straight up) position.

4. Verify pressure bypass/ rinse valve (E) in “SPRAY” position.

5. CAUTION: Do not drain solution onto the ground. Drain into a container. Drain solution in an area where people, animals, vegetation and water supply, etc., cannot be contaminated.

   Open Quik-Fill valve and drain solution into a bucket or suitable container.

6. After solution has drained, close Quik-Fill valve and replace cap.

7.

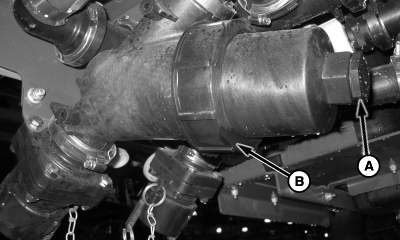

   N82355-UN-21NOV08

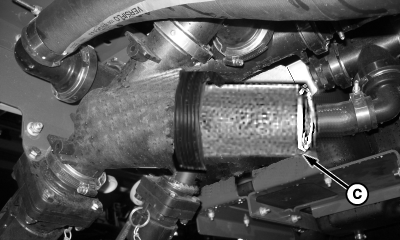

   N82610-UN-15JAN09

   A - Plug

   B - Retainer Ring

   C - Strainer

   Remove plug (A) from end of strainer cap using slip-joint pliers or equivalent tool and drain leftover solution into bucket.

---




8. Remove retainer ring (B) and strainer cap.

9. Pull strainer (C) out of strainer body.

10. Empty strainer and rinse with clean water.

11. Insert strainer into strainer body.

12. NOTE: Verify strainer properly seated in the strainer body before cap installed. If strainer not fully seated, cap and o-ring may not seat properly allowing leaks to occur.

    Install cap on strainer body.

13. Tighten cap using slip-joint pliers or equivalent tool and check for leaks.
