Draining Solution Tank

CAUTION: Spray system can contain hazardous material which can cause serious injury or death to you or others. Wear protective clothing, eyewear, and gloves. Drain solution tank in an area where people, animals, vegetation and water supply etc., cannot be contaminated.

1. CAUTION: Quik-Fill valve (A) can contain hazardous materials which can poison causing serious injury or death to you or others. Before removing Quik-Fill cap, make sure Quik-Fill valve is turned off.


   N81782-UN-15JAN09


   N82356-UN-10JUN09

   Shown In Open Position

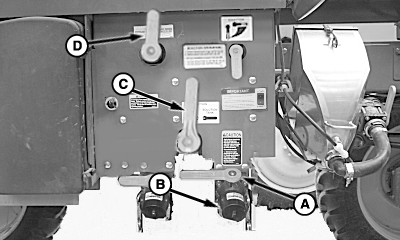

   A - Quik-Fill Valve

   B - Cap

   C - Suction Valve

   D - Pressure Bypass/Rinse Valve

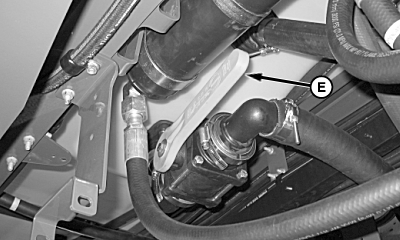

   E - Solution Tank Sump Valve

   Verify Quik-Fill valve is closed.

---




2. Open lock levers and remove cap (B).

3. Verify suction valve (C) in “SOLUTION TANK” position.

4. Verify pressure bypass/rinse valve (D) in “SPRAY” position.

5. Open solution tank sump valve (E) if closed.

6. Connect nurse tank hose to Quik-Fill or place suitable container under Quik-Fill to catch solution.

7. Open Quik-Fill valve.

8. After solution has drained close Quik-Fill valve.
