Operate Light Switch and High/Low Beam Switch

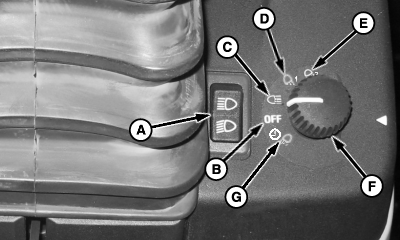

N83818-UN-31MAR09

A - High/Low Beam Switch

B - OFF Position

C - Road Position

D - Field Position 1

E - Field Position 2

F - Light Switch

G - Exit Lighting

CAUTION: Accidental collision with another vehicle can cause serious injury or death to you or others. Always comply with traffic regulations when driving machine on a road. Dim headlights to low-beam for oncoming vehicles.

To avoid motorist confusion, do not operate work lights when transporting on public roadways.

Light switch (F) has five positions—OFF (B), Road (C), Field 1 (D), Field 2 (E), Exit Lighting (G) and operates regardless of the key position.

Off Position

Turns off all exterior lighting with exception of warning lights if hazard light switch is on.

Exit Lighting

Exit lighting is activated by turning the light switch counter clockwise

Each time the exit lighting position (G) is activated on the light switch the cab roof lights and fill station light will turn on for 30 seconds. The operator can bump the exit lighting switch up to three times. Each bump increases the time that the lights stay on by 30 seconds for a maximum time of 90 seconds.

High/Low Beam

Push upper portion of switch (A) forward to activate high beam head lights. Push lower portion of switch forward to operate low beam.

Dim headlights for oncoming vehicles. Adjust headlights correctly. (See Aiming Headlights in the Electrical System Service section.)

NOTE: (See Light Operation Table in this section.)
