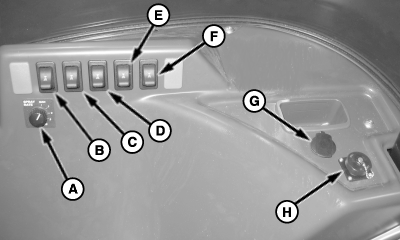

Side Console Switches

N82182-UN-16APR09

A - Rate Select Switch

B - R2 Spray Control Switch

C - R1 Spray Control Switch

D - Center Spray Control Switch

E - L1 Spray Control Switch

F - L2 Spray Control Switch

G - Cigarette Lighter

H - Accessory Electrical Outlet

NOTE: Boom sections numbered 1 closest to center on designated side, 3 being farthest to outside.
