Operate Boom Section Switches

N82361-UN-16APR09

N82360-UN-25NOV08

N74865-UN-19JAN07

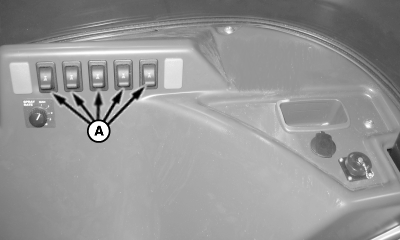

A - Boom Section Switches

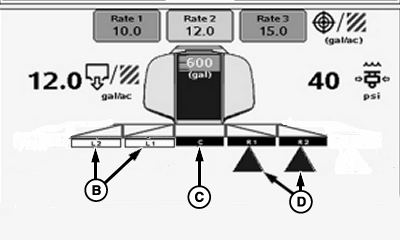

B - Sections OFF

C - Section Enabled

D - Sections Spraying

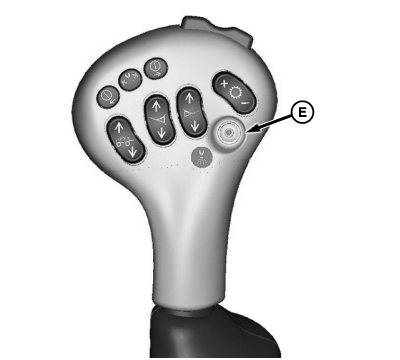

E - Master ON/Off switch

Lift boom section switches (A) to enable corresponding boom sections. Disabled sections appear as a white box with black lettering. Enabled section (C) appears as a black box with white lettering. Enabled sections (D) that have been activated (are spraying currently) with Spray System Master ON/OFF Switch (E) show a cone beneath the section.

NOTE: Boom sections numbered as 1 closest to center on designated side, and 2 being farthest to outside.
