Accessory Electrical Outlet

N82184-UN-16APR09

N42173QD-UN-30DEC96

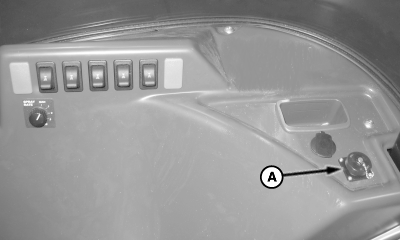

A - Accessory Outlet

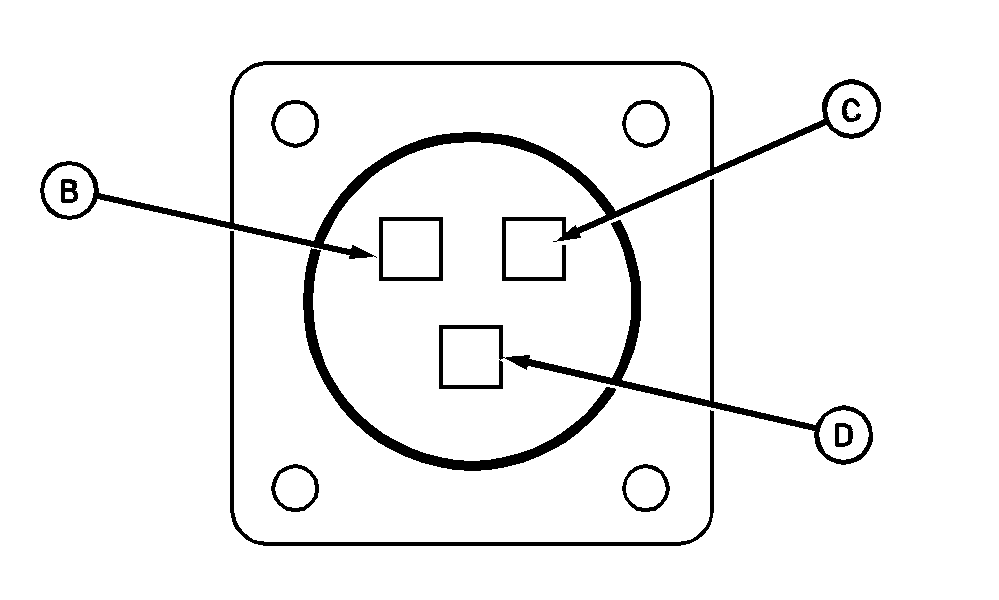

B - Switched Power Circuit Pin

C - Battery Circuit Pin

D - Ground Pin

12-volt accessory outlet (A) is used when connecting auxiliary equipment.

Pin (B) provides (key) switched power, pin (C) provides battery power (hot) and pin (D) is ground. Use auxiliary equipment installation instructions or (see your John Deere dealer).

NOTE: Outlet is protected by a 30-amp fuse.
