Multifunction Control Handle

N63039-UN-02JUL03

N74364-UN-08DEC06

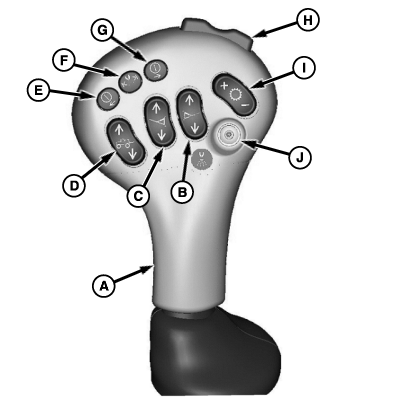

A - Multifunction Control Handle

B - Right-Hand Boom Raise/Lower (Fold/Unfold) Switch

C - Left-Hand Boom Raise/Lower (Fold/Unfold) Switch

D - Center Boom Raise/Lower Switch

E - IBS (Index Boom Section Control System) Left Button

F - IBS Reset Button

G - IBS Right Button

H - Foam Marker Switch

I - Speed Range Switch

J - Spray System Master ON/OFF Switch

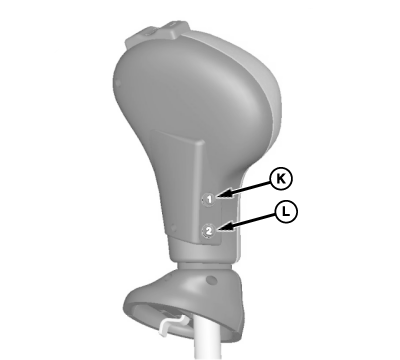

K - BoomTrac Pro™ Resume Switch — If equipped

L - AutoTrac™ Resume Switch — If equipped

NOTE: Depressing & holding boom fold mode switch located on the floor will change the function of the boom raise/lower switches to the function shown in ( ).
