Left-hand and Right-hand Fence Row Nozzles Switches—If Equipped

N82187-UN-03NOV08

N82364-UN-25NOV08

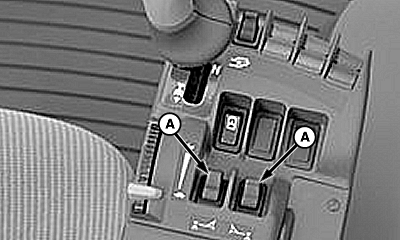

A - Fence Row Nozzle Switches

B - Cone

C - Cone

Push left or right fence row nozzle switches (A) forward to engage left or right side fence row nozzle. Pull back to disengage.

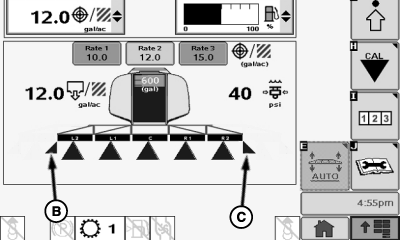

When the fence row nozzle is turned on, a cone (B) or (C) will appear at the end of the boom sections on Sprayer Main Page.

NOTE: Fence row nozzle will not operate if outer section (L2 or R2) on corresponding side is not enabled.
