Ladder Switch

N82365-UN-25NOV08

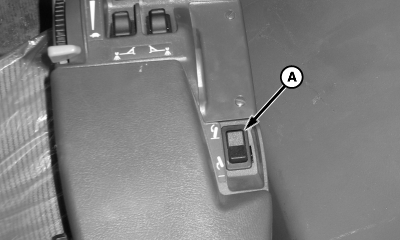

A - Ladder Switch

Ladder will automatically raise when machine moves forward at speeds greater than 1 mph and will automatically lower when machine is shut off.

Ladder will lower automatically after leaving seat for 3 seconds.

Ladder may also be raised by pulling switch (A) toward rear of machine or lowered by pushing switch toward front of machine.
