Operator’s Seat

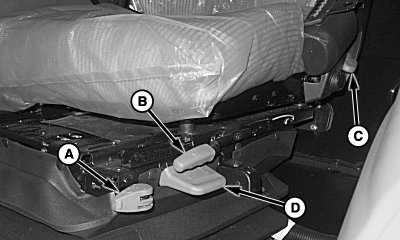

N82195-UN-03NOV08

A - Forward/Rearward Attenuator Lock-Out Handle

B - Forward/Rearward Adjustment Handle

C - Seat Back Angle Adjustment Handle

D - Height Adjustment Handle

IMPORTANT: Park vehicle and shut off engine before doing seat adjustments.

The operator’s seat has an air suspension system for added operator comfort. The seat has a self-contained electric compressor to adjust the seat suspension to match the operator’s height and weight. Seat adjustments are as follows:

Attenuator lockout handle (A) locks out or releases the forward or rearward movement. Pull up on the handle to lock; push down on the handle to release.

The forward/rearward adjustment handle (B) allows the seat to slide forward or rearward for best working position.

Pull up on handle (C) to adjust seat back angle. Release handle when seat back is in desired position.

Height adjustment is made with handle (D). To raise the seat, pull up on the handle. To lower the seat, push down on the handle.
