Dome Light and Console Light

N82345
N82345-UN-13NOV08

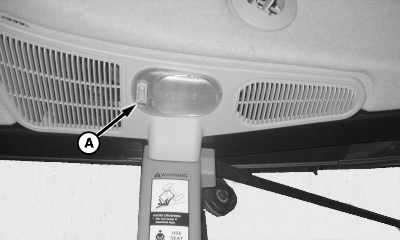

Dome Light

N82346
N82346-UN-13NOV08

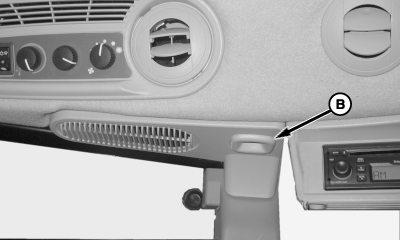

Console Light

A - Dome Light Switch

B - Console Light


    The dome light is controlled using a three position switch (A).

  • OFF position
  • ON position—Interior convenience light will illuminate when the cab door is opened and will go out when the door is closed.
  • ON position—Interior convenience light will illuminate until the switch is returned to either of the other two positions.

The console light (B) illuminates the area of CommandARM™ when the parking lights or headlights are switched on.


CommandARM is a trademark of Deere & Company

OUO6092,000012D-19-20090708
