Attach Lift Bracket

1. CAUTION: Avoid injury from a falling machine while jacking. Lift and support empty machine only. Only jack wheels using supplied lift bracket and support machine using John Deere JDGXXX shop stand or equivalent.

   Before jacking a front wheel, turn it fully outward.

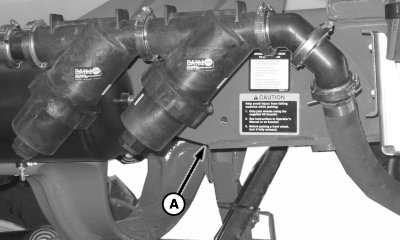

   N82446-UN-11DEC08

   Storage Position

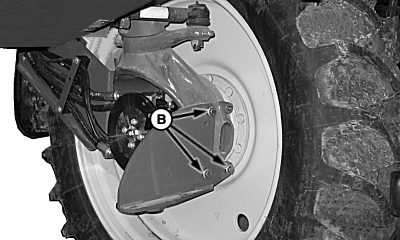

   N83107-UN-10FEB09

   Lifting Position

   A - Storage Position

   B - Cap Screws, M16 x 50

   Empty solution tank (if necessary).

---




2. Remove lift bracket from storage position (A) on right-hand rear frame rail.

3. Remove wheel shield and motor shield (if equipped).

4. Attach lift bracket to machine in a horizontal position as shown with M16 x 50 cap screws (B) pointing toward rear of machine.

5. Place a floor jack or bottle jack under lift bracket and lift machine as required.

6.

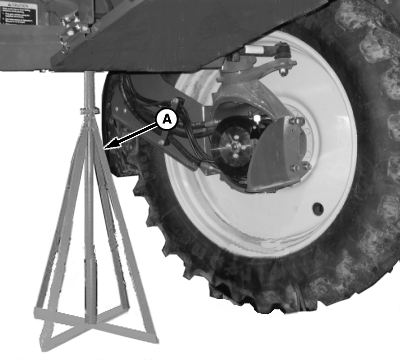

   N84198-UN-14APR09

   A - Shop Stand

   Support machine using John Deere JDGXXX shop stand or equivalent on axle as shown.

---




7. When finished using lift bracket, remove bracket and hardware. Install wheel shield and motor shields.

8. Return lift bracket to storage position.
