Check Solution Tank Straps—After First Ten Hours

N84404
N84404-UN-27APR09

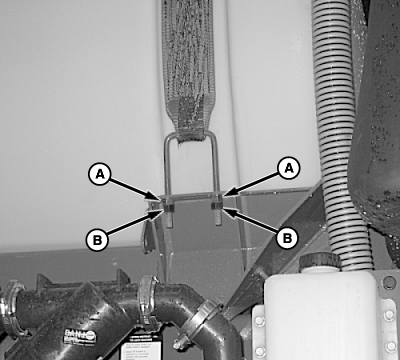

A - Adjustment Nut (2 Used)

B - Jam Nut

  1. Fill solution tank.

  2. Check solution tank straps for tightness.

  3. If strap loose, loosen jam nuts (B).

  4. Tighten adjustment nuts (A) until straps are snug, then turn an additional two turns.

  5. Tighten jam nuts.

OUO6092,0000139-19-20090424
