Replace Hydrostatic and Hydraulic Filters—500 Hours

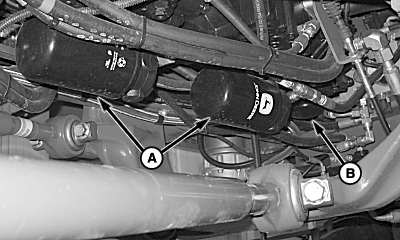

  1. N84585
    N84585-UN-01MAY09

    A - Hydrostatic Filters

    B - Hydraulic Filter

    Remove hydrostatic filters (A) and hydraulic filter (B).


  2. Lubricate new filter packing with recommended hydrostatic/hydraulic oil or equivalent. (See Hydrostatic/Hydraulic Drive Oil in Fuels, Lubricants and Coolants section for oil recommendation.)

  3. Install and hand tighten filter elements.

  4. Check oil level and add as required (see Checking Hydrostatic And Hydraulic Oil in the Engine and Drivetrain section).

OUO6092,0000143-19-20090609
