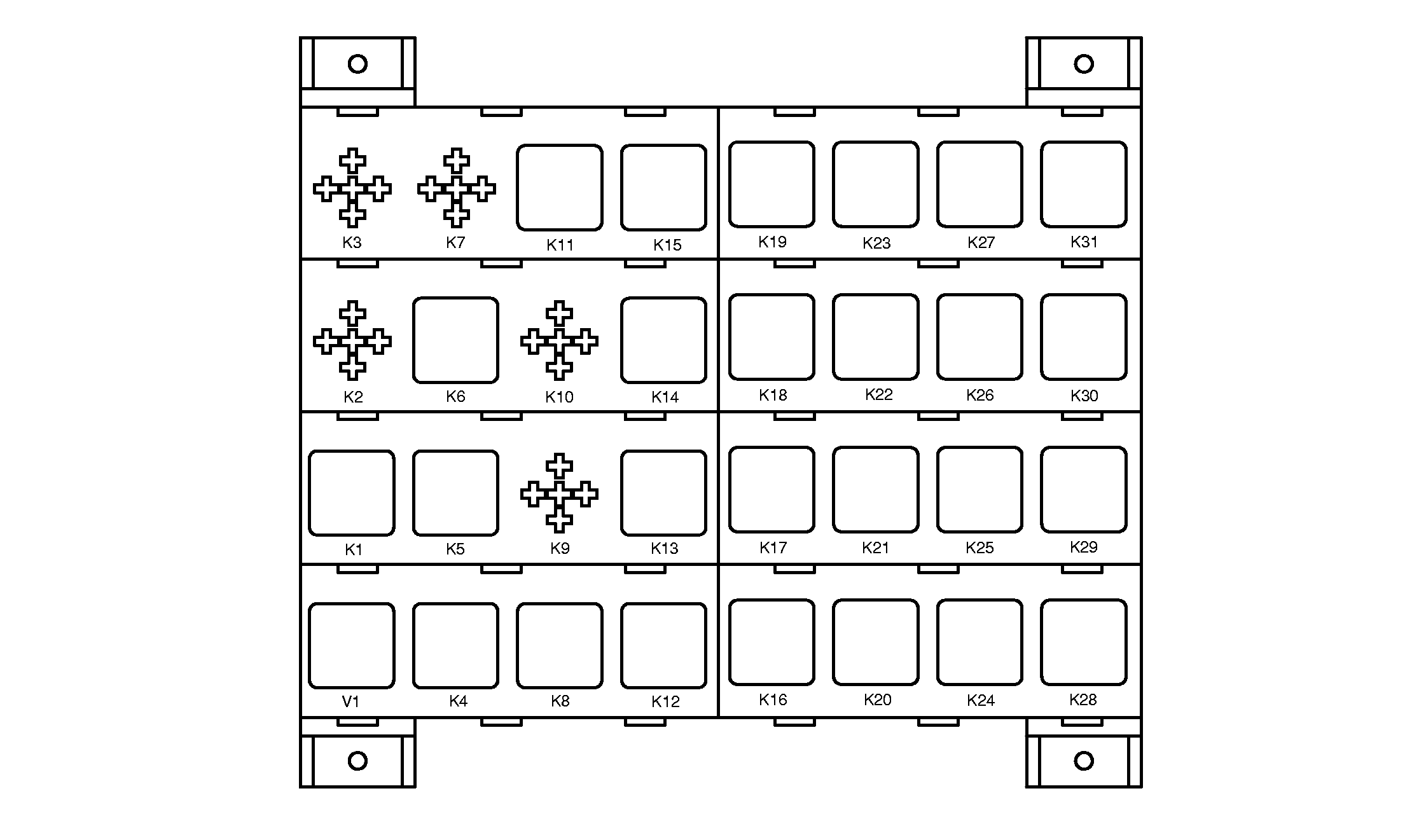

Load Center Relays and Diodes

N82457-UN-23APR09

V1 - Flash Lamp Diodes—Roof Lamp Control Diodes

K1 - Front Shift Relay

K2 - Not Used

K3 - Not Used

K4 - ELX1 Relay

K5 - Accessory Power Relay

K6 - Traction Control Relay

K7 - Not Used

K8 - Wiper Relay

K9 - Not Used

K10 - Not Used

K11 - Cab Blower Relay

K12 - ELX2 Relay

K13 - Right Blower Relay

K14 - Left Blower Relay

K15 - Neutral Start Relay

K16 - BHC Power Relay

K17 - Hood Lights Relay

K18 - Marker Lights Relay

K19 - Left-Hand Solution Valve Power Relay

K20 - Park Brake Relay

K21 - Rear Shift Relay

K22 - Auxiliary Plug Relay

K23 - Horn Relay

K24 - Chassis Lights Relay

K25 - Cab Lights Relay

K26 - Hi/Low Enable Lights Relay

K27 - Hi/Low Select Lights Relay

K28 - Right-Hand Warning Light Relay

K29 - Left-Hand Warning Light Relay

K30 - Brake Light Relay

K31 - Right-Hand Solution Valve Power Relay
