Operate in the Field

1.

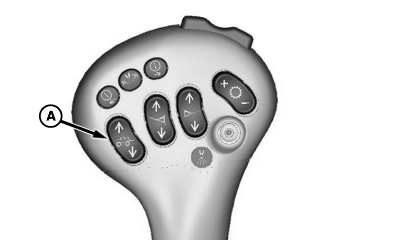

   N67612-UN-16SEP04

   A - Raise/Lower Switch

   Unfold boom and press raise/lower switch (A) to position boom at desired operating height.

---




2. Setup SprayStar control unit for your particular application. (See SprayStar System section for proper setup procedure.)

3.
   N82185-UN-03NOV08

   A - Solution Pump Switch

   Push forward on solution pump switch (A) to engage solution pump.

---




4.

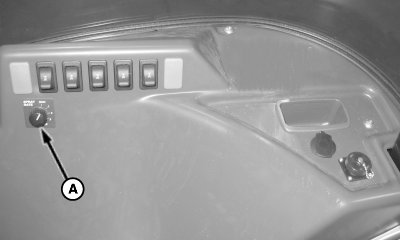

   N82183-UN-16APR09

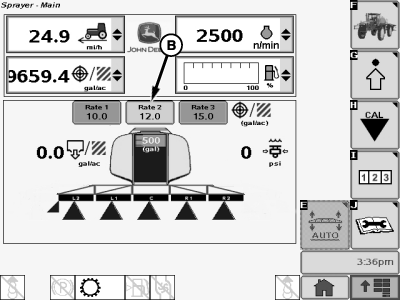

   N84191-UN-14APR09

   A - Rate Control Switch

   B - Selected Rate

   View spray operation display on monitor screen.

---




5. Turn rate control switch (A) to desired application rate (1, 2 or 3) or to manual pressure setting (MAN).

   NOTE: Rate selected (B) will be highlighted on monitor screen.

   If equipped with Swath Control Pro the “AUX” position on rate control switch is used for the map based rate.

6.

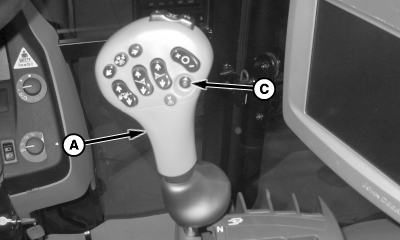

   N82620-UN-20MAY09

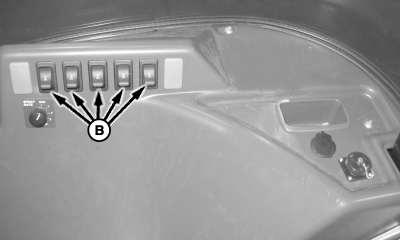

   N82353-UN-16APR09

   A - Multifunction Control Handle

   B - Boom Section Switches

   C - Master ON/OFF Switch

   Push multifunction control handle (A) slowly forward to start forward motion.

---




7. Lift all boom section switches (B).

   NOTE: Enabled booms have black fill color indication on the display.

8. Press master ON/OFF switch (C) to start spraying operation.

   NOTE: Actively spraying boom sections have cone indication under the boom section on the display.

9. NOTE: Spray system shut-down is not immediate. Solution flow will continue for a few seconds after pressing master ON/OFF switch. For best response time and coverage, turn spray off as you slow for row end.

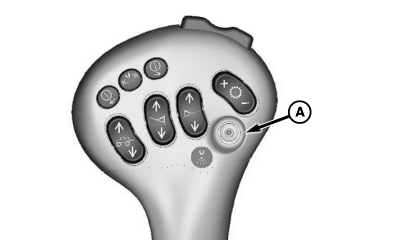

   N66488-UN-15SEP04

   A - Master ON/OFF Switch

   At row end, press master ON/OFF switch (A) to stop spraying. All other switches can remain in pre-set positions.

   NOTE: Spray system start-up is not immediate. To overcome delayed response, press master ON/OFF switch while moving forward to start spraying just before solution is actually needed.

---




10. When aligned with next row, press master ON/OFF switch to resume spraying.
