Warning

N82628
N82628-UN-27JAN09

N74951
N74951-UN-05FEB07

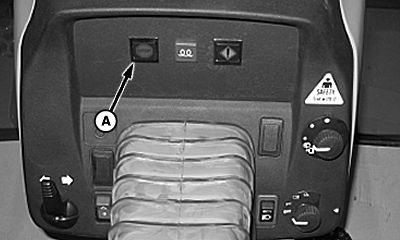

A - Stop Lamp

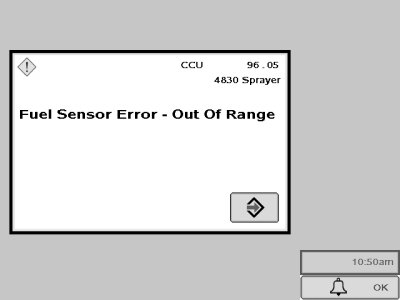

The stop lamp (A) lights and flashes on the steering console. The display is cleared and a full-page warning message appears.

Warning alarms are set by a controller to indicate a warning to the operator to stop the machine or damage could occur. Warnings are shown as a full page on the display with a continuous audible alarm until the alarm goes away.

A continuous audible alarm is sounded.

OUO6092,0000161-19-20090602
