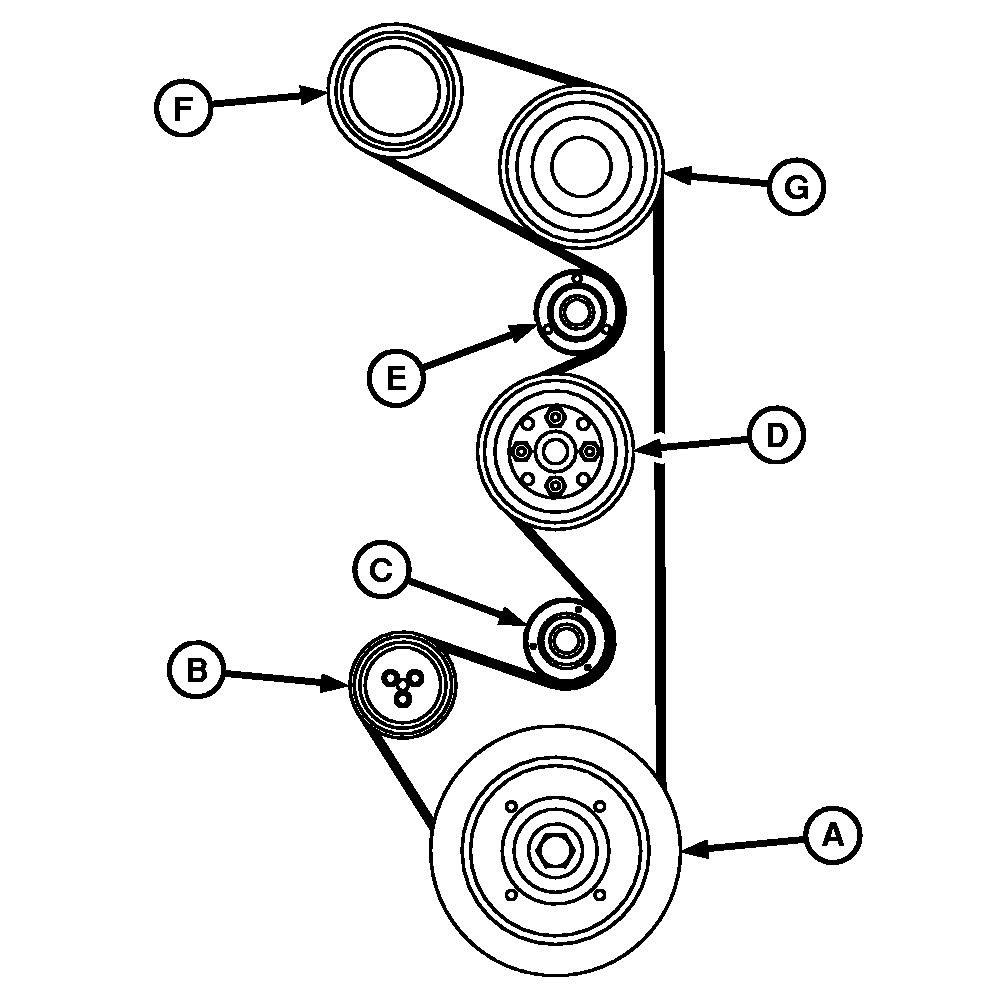

Fan Belt Routing

N83095-UN-04MAR09

A - Crankshaft Pulley

B - Water Pump Pulley

C - Tensioner

D - Fan Drive Pulley

E - Idler Pulley

F - Air Conditioning Compressor Pulley

G - On Board Air Compressor Pulley (If Equipped)

G - Idler Pulley (Non-OBA Machines)
