Clean Primary Engine Air Filter Element

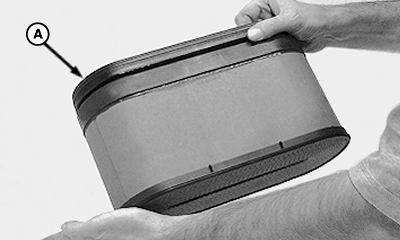

N83099-UN-04FEB09

A - Element

When the element must be serviced in the field, tap it on the palm of your hand as a temporary measure.

IMPORTANT: The guide ring must not be damaged or deformed.

When you return to your service area, clean the filter element thoroughly, or replace it with a new one.

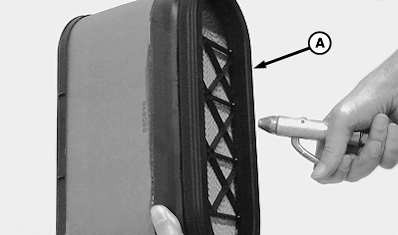

N83100-UN-04FEB09

If tapping element does not remove dust, blow out dust with compressed air (not exceeding 600 kPa; 6 bar; 90 psi) by inserting nozzle inside the element and blowing from the inside of the filter to the outside.

Replace element if cautionary statement appears on bottom of monitor screen after the element has been cleaned.
