Replace Primary and Secondary Engine Air Filters—1500 Hours or Two Years

CAUTION: A fall from the machine can cause serious injury or death. Be sure to have proper footing when replacing air cleaner elements.

1.

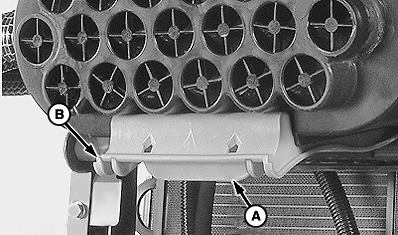

   N83097-UN-04FEB09

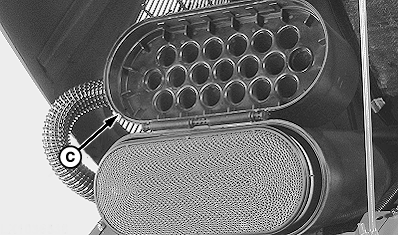

   N83098-UN-04FEB09

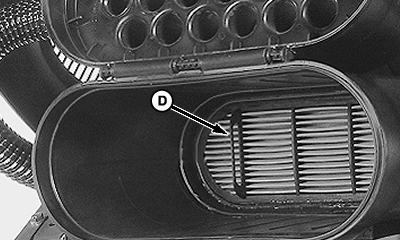

   N83101-UN-10FEB09

   A - Latch

   B - Catch

   C - Cover

   D - Handle

   Raise hood.

---




2. Release latches (A) and swing catch (B) down.

3. Fold cover (C) up.

4. Pull the primary filter element out of the cleaner housing.

5. Clean dirt from inside cover and canister.

6. IMPORTANT: Install new secondary filter immediately to prevent dust from entering air intake system.

   Pull on handle (D) to remove secondary filter.

7. Replace filters and reinstall cover.
