Clean Cooling Package

1.
   N83102-UN-17JUN09

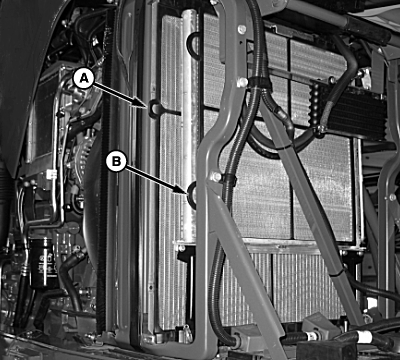

   A - Radiator Screen

   B - Condenser Screen

   Stop engine and remove key.

---




2. Raise hood.

3. Remove screens (A and B).

4.
   N83103-UN-10FEB09


   N84885-UN-17JUN09

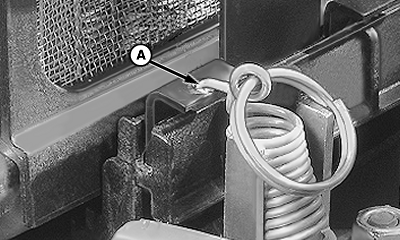

   A - Latch Spring (2 used)

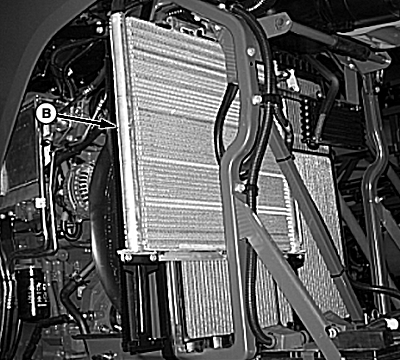

   B - Cooler/Condenser

   Disconnect latch spring (A) on both vehicles sides and slide cooler/condenser (B) out.

---




5. CAUTION: Reduce compressed air to 210 kPa (2 bar) (30 psi) or less when using for cleaning purposes. Clear area of bystanders, guard against flying debris, and wear personnel protection equipment, including eye protection. A filter type respirator is also advised to avoid inhalation of harmful particles.

   Use compressed air or water to clean all cooling package components. Straighten any bent fins.

6.
   N83105-UN-10FEB09


   N83106-UN-10FEB09

   A - Bottom Guide

   B - Top Guide

   Slide cooler/condenser in and install springs.

   NOTE: Verify that condenser engages properly in the lower and upper guide rails (A and B).

---




7. Reinstall screens.
