Prepare Machine For Transport on Semi-Tractor Trailer

1. CAUTION: Suspension linkages can cause injury to you or others from movement when inflating or deflating air springs. Keep hands and body away from suspension linkage.


   N84889-UN-19JUN09

   Rear Air Spring Shown


   N84890-UN-19JUN09

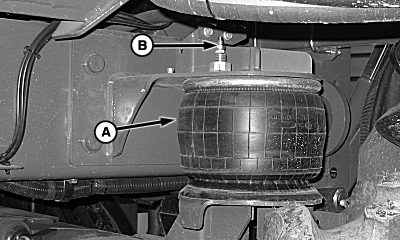

   A - Suspension Air Springs

   B - Air Valve

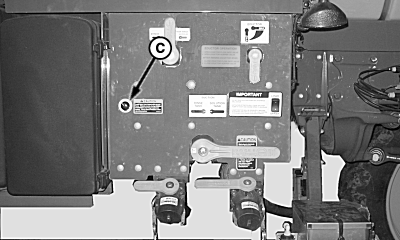

   C - Dump Control Valve

   Empty solution tank and rinse tank.

---




2. Deflate front and rear suspension air springs (A). Deflate each air bag individually using air valve (B) on machines without Auto Air Leveling. On machines equipped Auto Air Leveling use dump control valve (C) to deflate all at same time.

3.
   N83242-UN-23FEB09

   Boom Shown In Folded Position

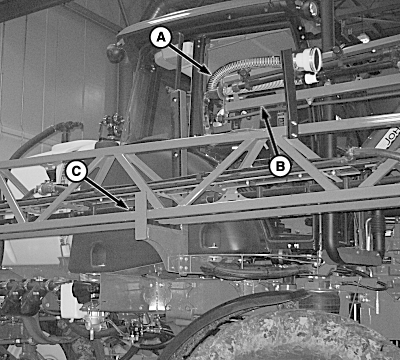

   A - Foamer Boot

   B - Tie Location

   C - Tie Location

   Completely fold booms.

---




4. Secure foamer boot (A) (if equipped) at end of each boom.

5. IMPORTANT: Do NOT tie boom wings to transport trailer.

   Tie outer boom assembly to the inner boom section at location (B).

6. Tie inner boom assembly to the boom support at location (C).

7.
   N83243-UN-20FEB09

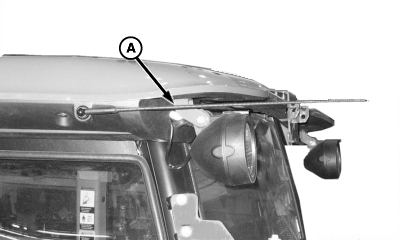

   A - Antenna

   Turn antenna down flat.

---




8. Drive machine onto trailer or truck.

9.
   N76718-UN-12JUN07

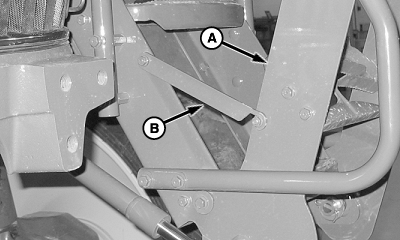

   A - Ladder

   B - Strap

   Get down from machine and raise lower portion of ladder (A) into transport position. Retain with hook strap (B) as shown.

---
