Adjust Shim Gap with Wheel on Ground

CAUTION: Solution tank can contain hazardous materials which can cause serious injury or death to you or others. Wear protective clothing, eye wear and gloves while draining tank. Drain solution in an area where people, animals, vegetation and water supplies, etc. cannot be contaminated.

1.

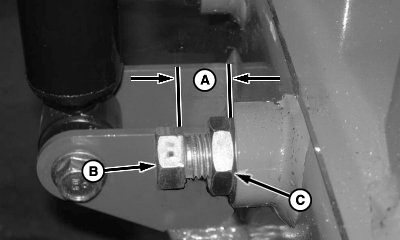

   N83248-UN-02MAR09

   Left-Hand Front

   A - Dimension, 15 mm (0.59 in.)

   B - Adjusting Bolt, (3 Used)

   C - Jam Nut, (3 Used)

   Drain solution tank. (See Drain Solution Tank in the Wet System section.)

---




2. NOTE: If sticking occurs, remove debris from axle knees and spray with TY25733 teflon based lubricant. Activate tread adjust in and out until free.

   Completely retract tread for hydraulic tread adjust option, or set manual machines to desired tread setting. (See Setting Tread Width procedures in this section.)

3. If not already loose, loosen all jam nuts on adjusting bolts.

4. Set three adjusting bolts (B) on shock absorber side of axle to dimension (A) of 15 mm (0.59 in.).

5. Lock adjusting bolts by tightening jam nuts (C) to specification.

   Item	Measurement	Specification
   Jam Nut	Torque	250 N˙m (184 lb-ft)

6.

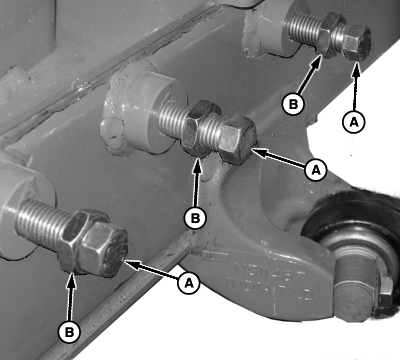

   N83249-UN-02MAR09

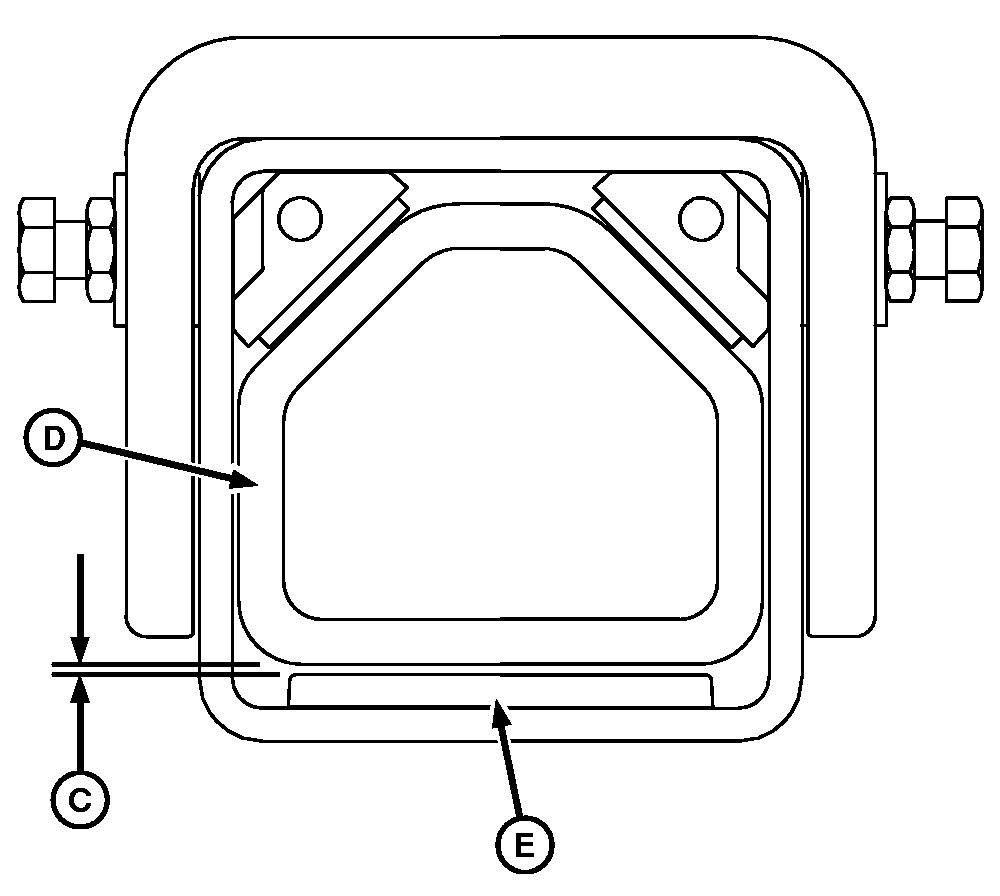

   N83250-UN-02MAR09

   A - Adjusting Bolts, (3 Used)

   B - Jam Nut, (3 Used)

   C - Gap

   D - Axle Knee

   E - Lower Shim Pad

   Tighten adjusting bolts (A) on tie rod side of axle 1/4 turn at a time. Keep tightening until gap (C) between axle knee (D) and lower shim pad (E) measures between 0.5 to 0.8 mm (0.020 to 0.030 in.).

   Item	Measurement	Specification
   Adjusting Bolts	Torque	100 N˙m (75 lb-ft)

---




7. Tighten all jam nuts (B) to specification.

   Item	Measurement	Specification
   Jam Nut	Torque	250 N˙m (184 lb-ft)

8. Verify knee is not contacting inside wall of axle tube. Knee should be approximately centered in the axle tube. If knee is contacting axle tube repeat procedure with altered dimension (shorter or longer) for the shock side adjusting bolts.

9. Operate the machine and adjust the tread in-and-out to make sure no binding occurs.
