Tighten Lug Nuts—After First Hour

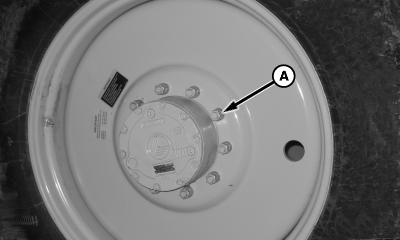

N83108-UN-10FEB09

A - Wheel Lug Nuts

Tighten wheel lug nuts (A) in a crisscross pattern to specification after first hour of use and daily until torque is maintained.

Item	Measurement	Specification
Wheel Lug Nuts	Torque (Dry)	515 N˙m (380 lb-ft)

IMPORTANT: Damage to planetary hub and wheel can occur if the correct lug nut torque is not maintained. Tighten lug nuts in a crisscross pattern to specification. Tighten wheel lug nuts after first one hour of use and daily thereafter until correct torque is maintained. Check wheel lug nuts torque after every 100 hours of use.
