Change Planetary Hub Oil—After First 50 Hours

1.

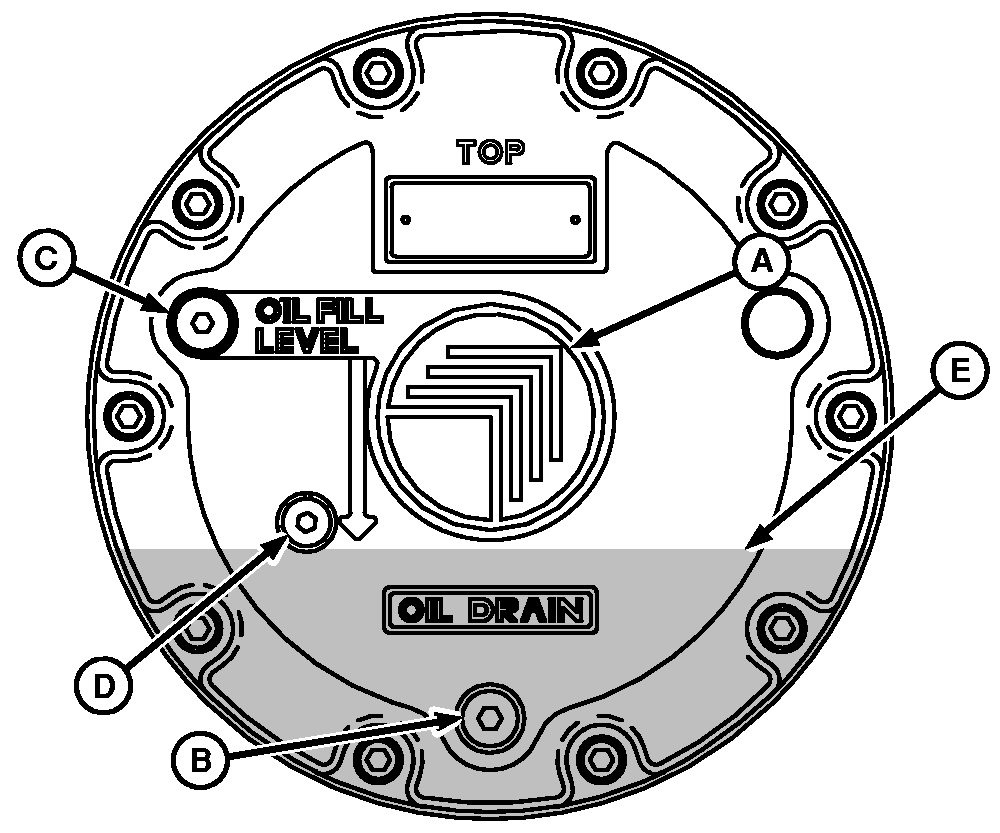

   N83253-UN-03MAR09

   A - Arrow At 2 O’clock Position

   B - Drain Plug

   C - Fill Plug

   D - Fill Level Plug

   E - Fill Level

   Park machine on flat level surface.

---




2. Rotate hub until casting arrow is pointed to 2 o’clock position (A).

3. Remove plug (B) and drain oil into suitable container. Reinstall plug.

4. Remove fill plug (C).

5. Remove fill level plug (D).

6. Fill hub to oil level (E) with GL5 85W-140 gear lube. (See Specifications section for refill capacity.)

7. Reinstall fill plug and fill level plug.
