Lubricate Steering Cylinder Ball Joints—100 Hours

IMPORTANT: Use only John Deere SD Polyurea Grease for lubricating suspension and steering components. Use of other greases in the suspension system is not recommended. Use of other greases can result in premature wear of the suspension components.

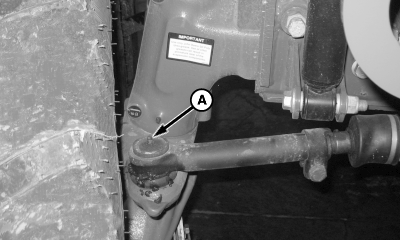

N83533-UN-10MAR09

Narrow Machine

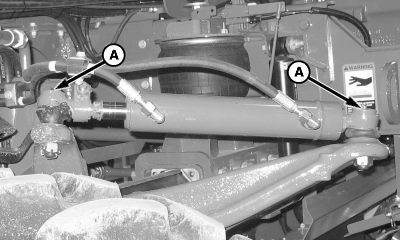

N83534-UN-29JUN09

Wide Machine

A - Steering Cylinder Ball Joints
