Lubricate Drive Shaft U-Joints—Every 250 Hours

N83535
N83535-UN-25JUN09

N85430
N85430-UN-25JUN09

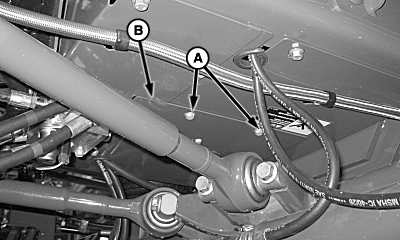

A - Cap Screw

B - Shield

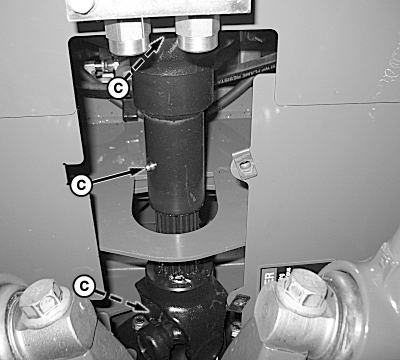

C - Grease Fitting

IMPORTANT: Avoid damage to needle bearing. Do not use grease containing more that 1% molybdenum disulfide. Use SD Polyurea (TY6341) grease or other greases that meet the following:

  • John Deere specification JDM J13E4
  • NLGI Performance Classification GC-LB
  • NLGI No. 2 standard specification

  1. Remove cap screw (A) and lower shield (B).

  2. NOTE: Drive shaft has a total of three grease fittings.

    Lubricate grease fittings (C).

OUO6092,000018C-19-20090625
