Inspect Hydro Isolators—Annually

N83541-UN-25JUN09

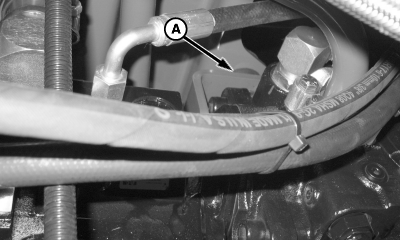

A - Isolators

Inspect three hydro isolators (A) for loose, damaged, or missing bushings. There are two isolators at the front of the hydrostatic pumps and one at the rear.
