Service Engine Air Intake and Pre-Cleaner—750 Hours

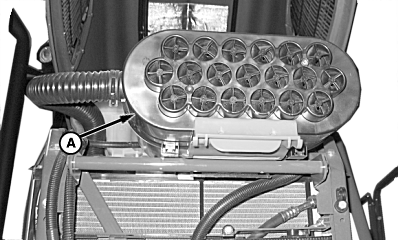

N84405-UN-27APR09

A - Aspirator Tubes

1. Raise hood.

2. Clean aspirator tubes (D) with compressed air or wash tubes in warm water using a mild detergent. Rinse aspirator tubes in clean water. Dry before installing.

3. Tighten all air intake system joints.

4. Tighten hose clamps at turbocharger.
