Adjust Front Axle Toe-In (Narrow Machine)

1.

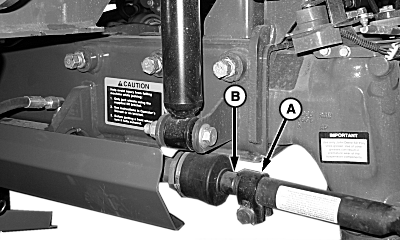

   N83813-UN-17JUN09

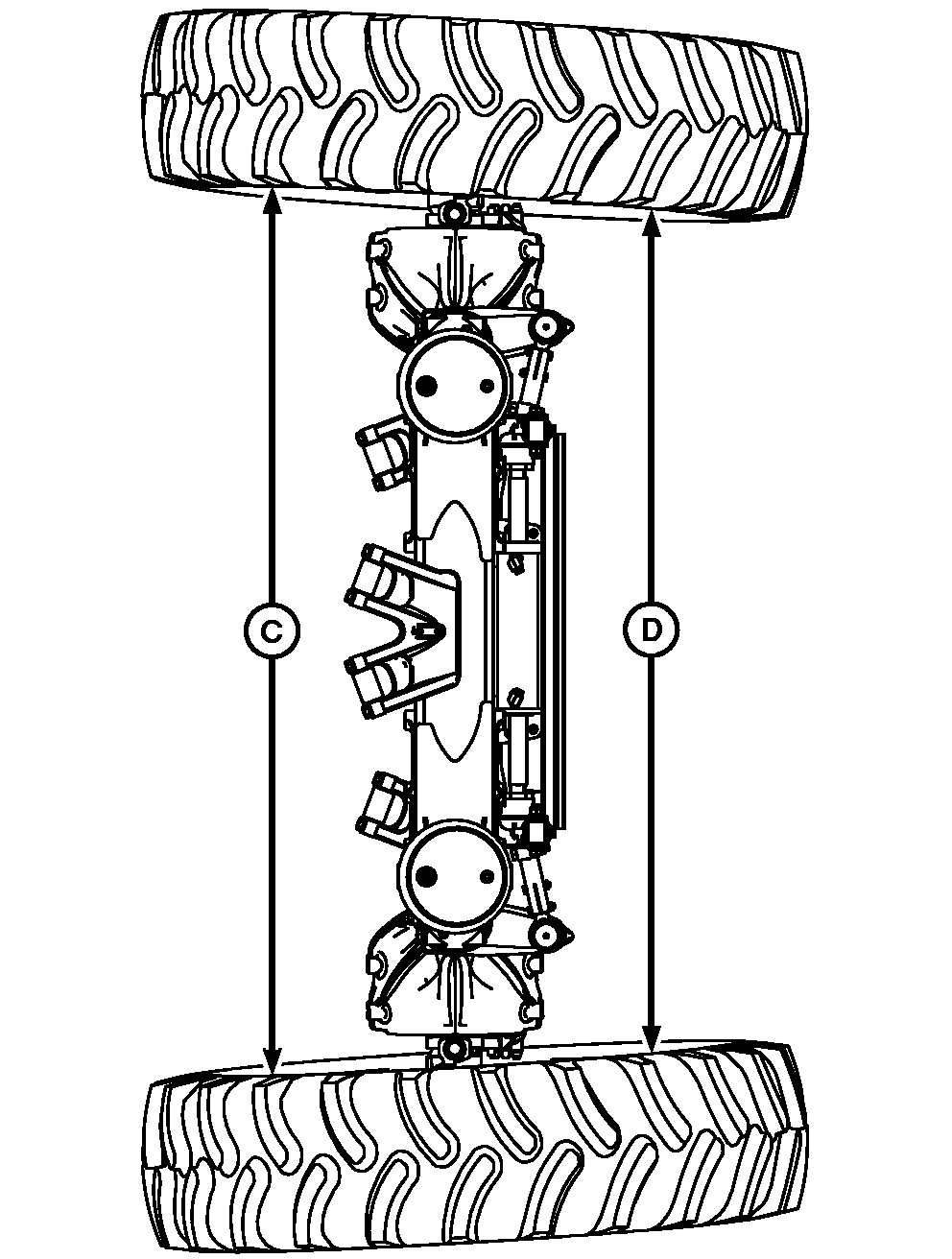

   N84886-UN-18JUN09

   A - Shield

   B - Cylinder Rod

   C - Dimension

   D - Dimension

   With wheels straight ahead loosen clamp cap screw (A) on both sides of steering cylinder.

---




2. Adjust threaded stud (B) equally until difference between (C and D) are within specified range.

   Item	Measurement	Specification
   Front Wheels	Toe-In	10—25 mm (3/8—1 in.)

3. Tighten clamp cap screw on each side of machine.

4. Perform Check Front Axle Toe-In procedure to verify adjustments.
