Diagnostic Readings

1.
   N84144-UN-08APR09

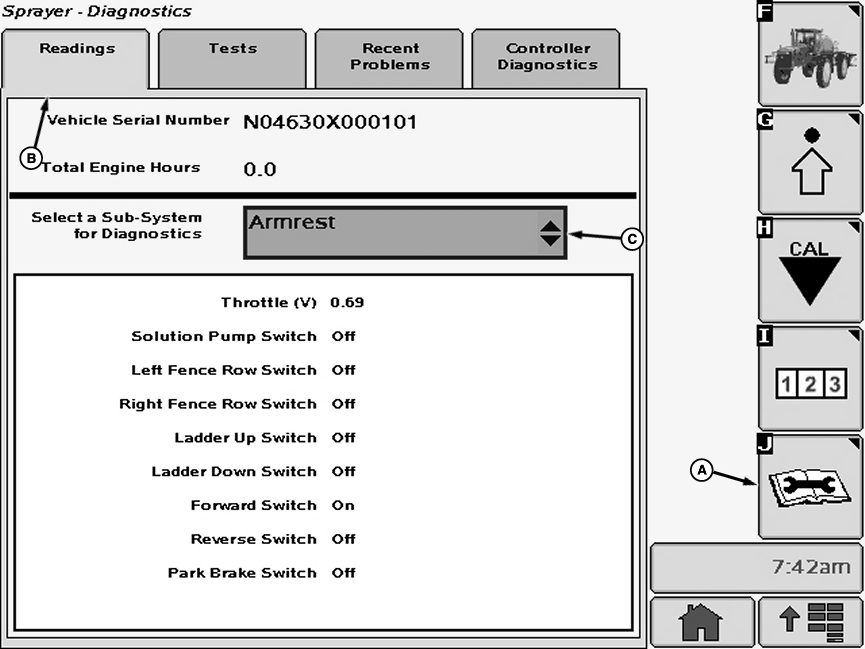

   A - Diagnostics Softkey

   B - Readings Tab

   C - Drop-Down Menu

   Select the Diagnostics softkey (A) to view the sprayer diagnostics menu.

---




2. Select the “Readings” tab (B).

3. Select drop-down menu (C) next to “Select a Sub-System for Diagnostics” and select between:

   • Armrest
   • Boom Hydraulics
   • Cab
   • Hydro Handle
   • Drive Train
   • Engine
   • Vehicle
   • Solution System
   • Spray Valves
