Enable Boom Pressure Relief

1. CAUTION: Avoid unintended spray from nozzles. Do not use when non-John Deere after-market solution system equipment is installed. These include but are not limited to, direct injection and section ON/OFF control systems.

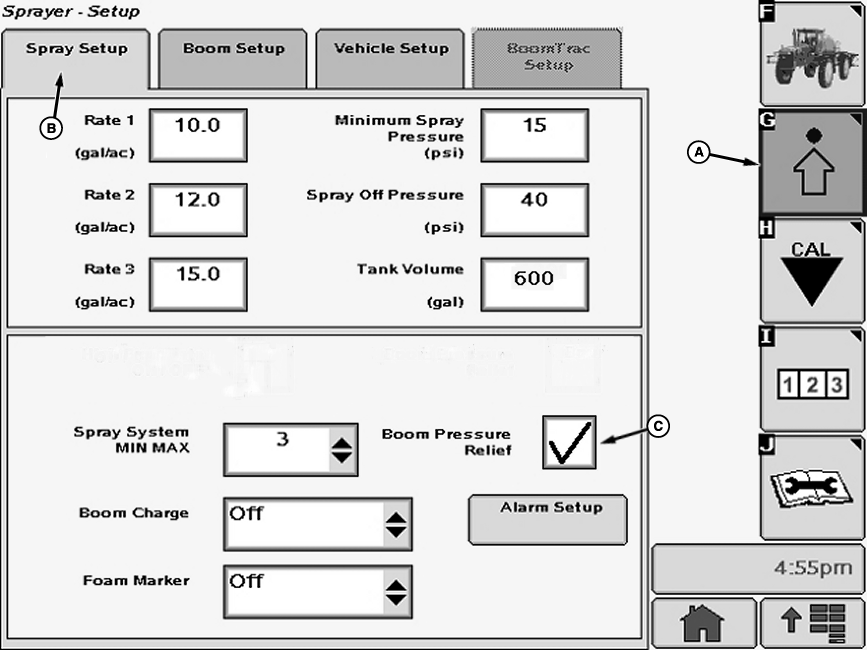

   N84155-UN-08APR09

   A - Setup Softkey

   B - Spray Setup Tab

   C - Check Box

   Select the Setup softkey (A) to view the setup menu.

---




2. Select the Spray Setup tab (B).

3. NOTE: A check mark in the box indicates that “Boom Pressure Relief” is activated.

   Select check box (C) next to “Boom Pressure Relief” and a check will appear inside box activating item. To deactivate a check box, touch check box to remove the check.
