Spray with Boom at 18.3 m (60 ft)

N84393-UN-21APR09

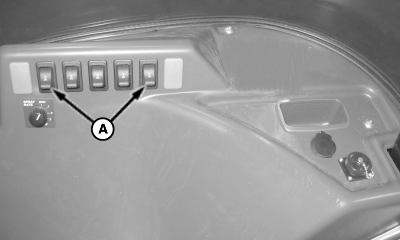

A - Switches

1. Fold boom to 18.3 m (60 ft).

2. Turn outer boom section switches (A) off. The boom and SprayStar is now ready to spray at 18.3 m (60 ft).

   NOTE: Spray rate control will automatically adjust for spraying at 18.3 m (60 ft).

3. To spray with entire boom, turn outer boom section switches on and unfold boom.
