Adjust Breakaway Section Springs

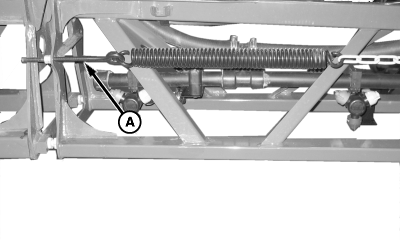

N84394-UN-21APR09
A - Eyebolt Nut
Tighten anchoring eyebolt nut (A) to obtain a spring length of 445 mm (17.5 in.) hook to hook. This provides the recommended (and maximum) spring tension.
OUO6092,00001DF-19-20090707
