Adjust Boom Stop Bolts

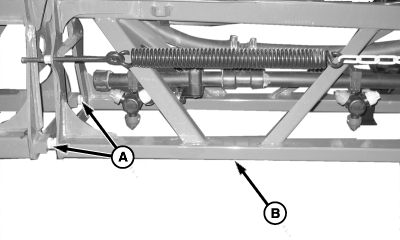

N84396-UN-21APR09

Adjust Stop Bolt For Outer Section

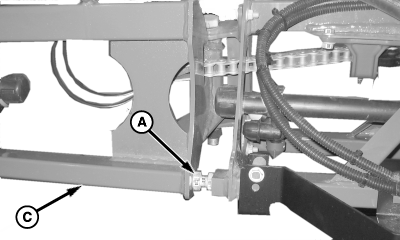

N84397-UN-21APR09

A - Stop Bolt

B - Outer Section

C - Breakaway Section

Adjust outer boom section stop bolt (A) in or out so that outer section (B) or breakaway section (C) is in line with the rest of boom.
