Replace Alternator Belt

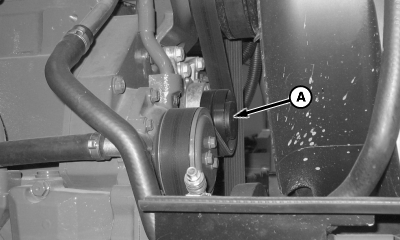

  1. N84400
    N84400-UN-24APR09

    A - Cap

    Raise hood.


  2. Remove cap (A) from tensioner pulley.

  3. Release tension on fan belt using a 13 mm (1/2 in.) breaker bar and appropriate socket. Remove fan drive belt from tensioner pulley.

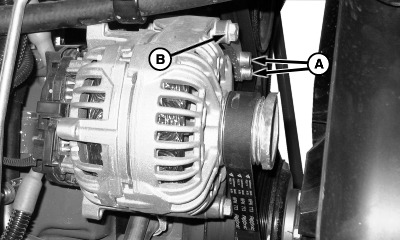

  4. N84882
    N84882-UN-26JUN09

    A - Alternator Belt

    Loosen screws (A) and remove cap screw (B).


  5. Remove alternator belt off alternator pulley.

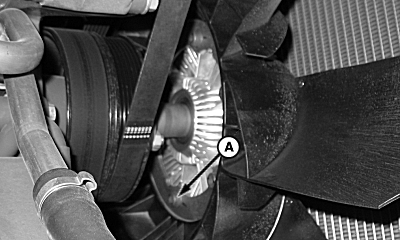

  6. N84402
    N84402-UN-24APR09

    A - Screws

    Remove screws (A) and slide fan blade forward, toward radiator.


  7. Slide alternator belt over fan clutch and remove.

  8. Slide replacement alternator belt over fan clutch.

  9. Reinstall fan.

  10. Install alternator belt on alternator pulley.

  11. N84882
    N84882-UN-26JUN09

    A - Alternator Belt

    Install cap screw (A) and tighten screws (B).


  12. Position tensioner pulley, using a 13 mm (1/2 in.) breaker bar and appropriate socket, for installing fan drive belt.

  13. Lower hood.

OUO6092,00001E3-19-20090706
