Check Suspension Rod Hardware—After First 100 Hours

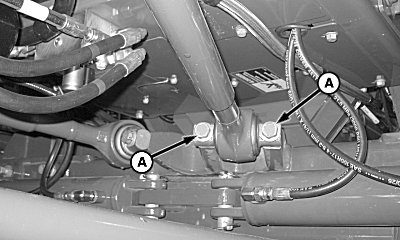

N84407-UN-25JUN09
A - Cap Screws (32 Used)
Verify all suspension rod cap screws (A) are tightened to specification.| Item | Measurement | Specification |
| Cap Screw | Torque (Wet) | 275 N˙m (203 lb.-ft) |
NOTE: If suspension rod cap screws are removed, coat threads with 10W30 oil prior to installing.
OUO6092,00001E7-19-20090625 |
