Back of Display

PC8863-UN-02NOV05

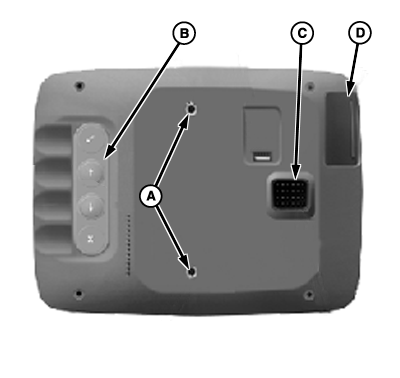

Backside of Display

Backside of Display contains:

Display Mounting Holes (A)—attach to bracket on machine

Secondary Navigational point (B)—provides backup navigation with display

Display Connector (C)—connects vehicle wiring harness plugs with display for system power and communication

Data Card Door/Slot (D)—houses data card used for data collection and saving selected display and implement settings

NOTE: Backside of display will all have label with display model and serial number on it.
