Fold Boom In Limited Height Area

1. CAUTION: Avoid injury or death to others. Make sure no one is standing near boom when folding to transport position.

   NOTE: A fold and unfold quick reference decal is located on the console.

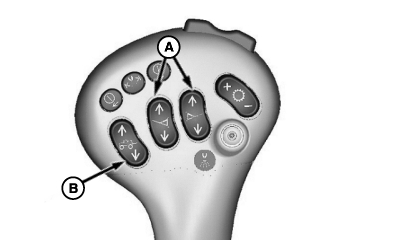

   N84588-UN-01MAY09

   A - Fold/Level Switches

   B - Raise/Lower Switch

   Tilt booms up to maximum level by pressing top of fold/level switches (A).

---




2. Press bottom of raise/lower switch (B) and lower boom to lowest position.

3.
   N84392-UN-21APR09


   N84586-UN-01MAY09

   A - Fold Mode Switch

   B - Fold/Level Switches

   Press and hold fold mode switch (A) down while pressing top of fold/level switches (B) until the outer boom wing folds over onto the inner wing.

   NOTE: When using the fold mode switch (A), the top or bottom of the raise/lower switch (C) can be used in place of holding both of the corresponding fold/level switches (B). It will operate both sides of boom simultaneously.

---




4. Release fold/level switches and fold mode switch.

5. Press top of raise/lower switch (C) and raise boom to highest position.

6. IMPORTANT: To avoid excessive wear on booms, do not press and release repeatedly on fold/level switches to slow boom down when folding. Fold cylinders are designed to slow down automatically when close to final fold position.


   N84392-UN-21APR09


   N84586-UN-01MAY09

   A - Fold Mode Switch

   B - Fold/Level Switches

   C - Raise/Lower Switch

   Press and hold fold mode switch (A) down while pressing top of fold/level switches (B) until inner wing sections fold into front cradles.

---




7. Release fold/level switches and fold mode switch.

8. Press bottom of raise/lower switch (C) and lower boom onto rear boom rests.

   IMPORTANT: Do not level cylinders when boom is folded in unless transporting machine on semi trailer and transport width needs to be under 3.7 m (12 ft) or machine damage will occur.

   Machine may be damaged if transported with booms not completely lowered onto boom rests. Booms must be folded and lowered onto boom rests before transporting.

   NOTE: Leveling cylinders need to be retracted only when transport width needs to be under 3.7 m (12 ft).
