Change Cab Air Filters

CAUTION: The use of activated carbon filters in the air ventilation system of the operator’s cab does not protect against damage to your health caused by toxic chemicals. Prior to working with chemicals, review and comply with the warning and handling instructions of the manufacturer for the chemicals used and take the recommended actions to protect yourself and the environment against damage.

Chemicals must be stored and transported only in properly closed containers that are specified for the purpose. Do not store or transport these containers inside the operator’s cab. For detailed instructions, refer to the documentation provided by the manufacturer.

IMPORTANT: Activated carbon filters must be replaced after 250 operating hours or after one year (whichever comes first). Heavy-duty operation may require shorter service intervals. Therefore, check the condition of the filter elements regularly. Activated carbon filters must NOT be cleaned (e.g. with compressed air), instead they must be replaced by new filter elements immediately when the filtering effect decreases.

Dispose of used filters in accordance with regional regulations.

Replace Fresh Air Filters (Outside Roof)

1. NOTE: There are filters located on each side of cab. They need to be replaced at the same time.

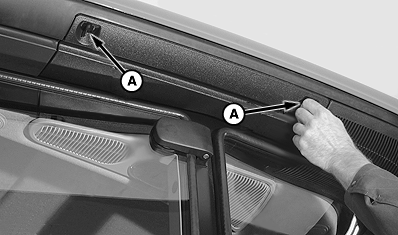

   N82458-UN-17DEC08

   A - Butterfly Screws (2 used)

   Take out the two butterfly screws (A) and remove the cover.

---




2.

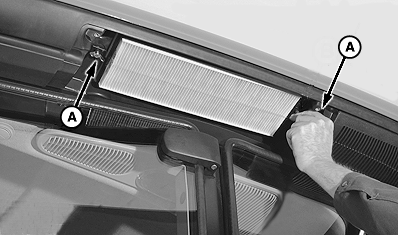

   N82459-UN-17DEC08

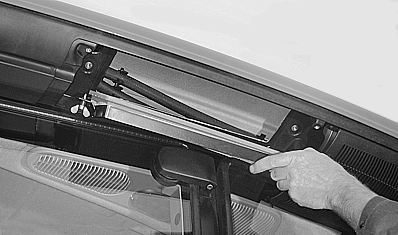

   N82460-UN-17DEC08

   A - Butterfly Screws (2 used)

   Take out the two butterfly screws (A) and remove the installation frame and filter element.

---




3.

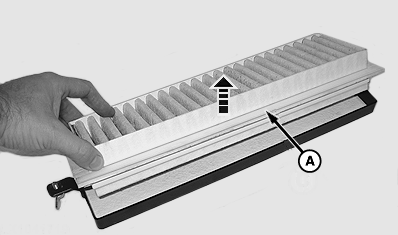

   N82461-UN-17DEC08

   A - Gasket

   Install a new filter element in the installation frame. Make sure that filter element gasket (A) is facing away from the installation frame.

---




4.

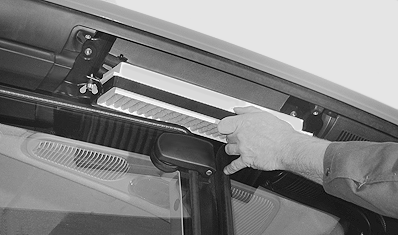

   N82462-UN-17DEC08

   Clean the opening in the roof and check the sealing surfaces. Install the installation frame and filter element in the roof.

---




5.

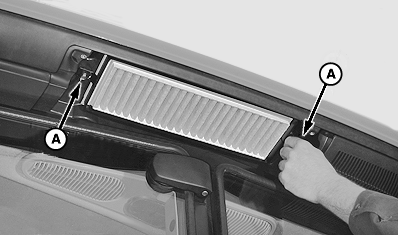

   N82463-UN-17DEC08

   A - Butterfly Screws (2 used)

   Make sure that the filter element is seated properly and tighten butterfly screws (A).

---




6.
   N82458-UN-17DEC08

   A - Butterfly Screws (2 used)

   Install the cover and tighten butterfly screws (A).

---




7. Repeat on opposite side of operator’s cab.

8. When air filters are replaced record date and engine hours on chart.

Replace the Recirculated Air Filters (Inside Roof)

1.

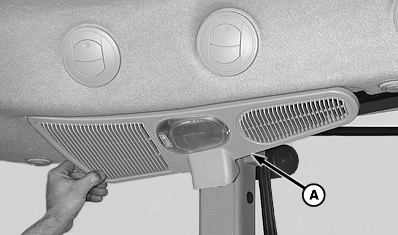

   N82464-UN-17DEC08

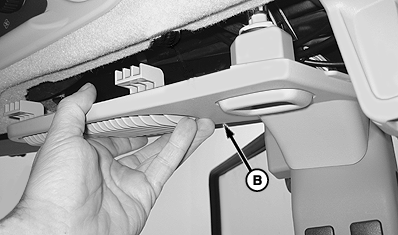

   N82465-UN-17DEC08

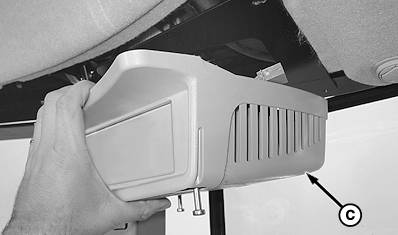

   N82466-UN-17DEC08

   A - Left-Hand Cover

   B - Right-Hand Cover

   C - Compartment

   Remove left-hand cover (A), right-hand cover (B), and radio compartment (C).

---




2.

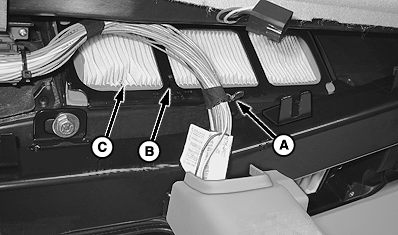

   N82467-UN-17DEC08

   A - Butterfly screw

   B - Retaining frame

   C - Filter element

   Take out butterfly screw (A), and lift out retaining frame (B) and filter element (C).

---




3.

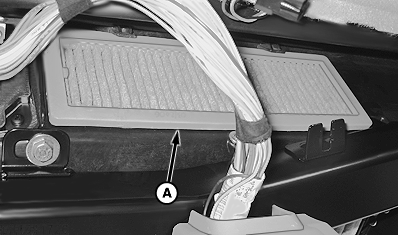

   N82468-UN-17DEC08

   A - Filter element

   Clean the opening in the roof and check the sealing surfaces. Install filter element (A) in the roof and align it so that the gasket makes proper contact with the sealing surfaces.

---




4.

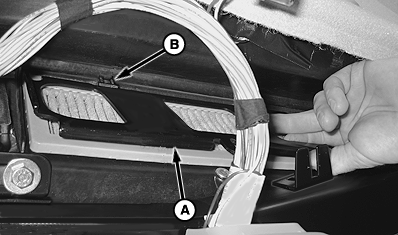

   N82469-UN-17DEC08

   A - Retaining frame

   B - Lugs (2 used)

   Slide the retaining frame (A) under the two lugs (B), and secure with a butterfly screw.

---




5. Repeat on opposite side of operator’s cab.

6.
   N82464-UN-17DEC08


   N82465-UN-17DEC08


   N82466-UN-17DEC08

   A - Left-Hand Cover

   B - Right-Hand Cover

   C - Compartment

   Install covers (A) and (B), and radio compartment (C).

---




7. When air filters are replaced record date and engine hours on chart.

Cab Air Filters Replacement
Date	Machine Hours	Date	Machine Hours
