Check Air Springs—Daily (Machines not Equipped with Auto Air Spring Leveling System)

N82612-UN-26JAN09

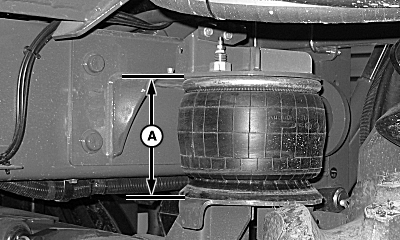

Left Rear Air Spring Assembly Shown

A - Distance Between Air Spring Mounting Plates

CAUTION: Air spring can explode if over inflated causing serious injury or death to you or others. When adjusting suspension assemblies, do not exceed 689 kPa (6.89 bar) (100 psi). Keep hands and body away from suspension linkage.

NOTE: Machines should be parked on level ground with booms in folded position when checking air springs.

It is normal for air springs to lose air after a few days of use, especially in rough terrain.

Inspect air spring assemblies (A) for proper air bag inflation daily.

Inflate air springs to the following specifications.

Air Spring Settings
Air Spring Dimension	Solution Tank Empty	Solution Tank Full
Front Setting	175 mm (7 in.)	165 mm (6.5 in.)
Rear Setting	240 mm (9.5 in.)	185 mm (7.25 in.)
