Install Fire Extinguisher (If Equipped)

1.
   N83251-UN-02MAR09


   N83252-UN-02MAR09

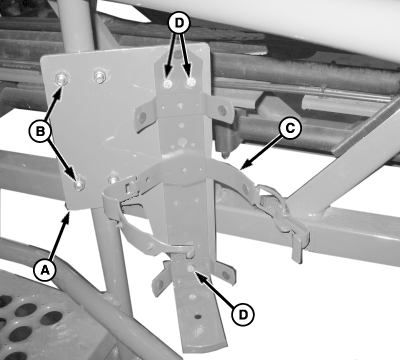

   A - Plate

   B - U-bolt, M10 (2 Used)

   C - Fire Extinguisher Bracket

   D - Cap Screws, M6 x 16 (3 Used)

   E - Fire Extinguisher

   Attach plate (A) to handrail using M10 U-bolts (B) and nuts.

---




2. Attach fire extinguisher bracket (C) to plate using M6 x 16 cap screws (D) and nuts.

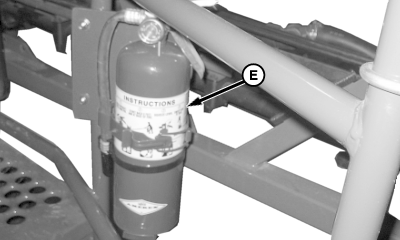

3. Install fire extinguisher (E) in bracket.
