Clean Flowmeter—Daily

1.

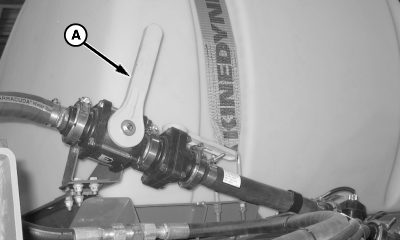

   N81772-UN-10JUN09

   A - Boom Shut-off Valve

   Shut off solution pump.

---




2. Close boom shut-off valve (A).

3. CAUTION: Do not drain solution onto the ground. Drain into a container. Drain solution in an area where people, animals, vegetation and water supply, etc., cannot be contaminated.

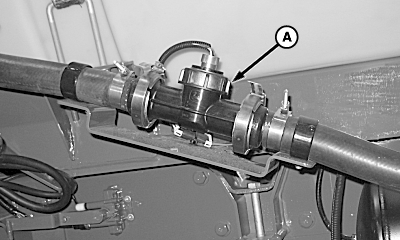

   N84877-UN-09JUN09

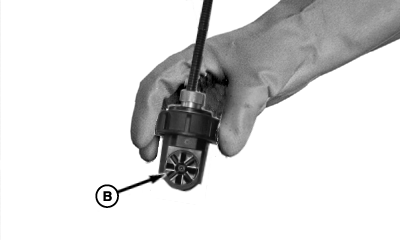

   N85432-UN-29JUN09

   A - Flowmeter Inserts

   B - Turbine

   Unscrew flowmeter insert (A) and remove.

---




4. Clean insert with John Deere Brake and Parts Cleaner (Part No. TY26101). Make sure turbine (B) turns easily.

5. Install insert in flowmeter.

6. Open boom shut-off valve.
