OMN300896

Light Operation Table

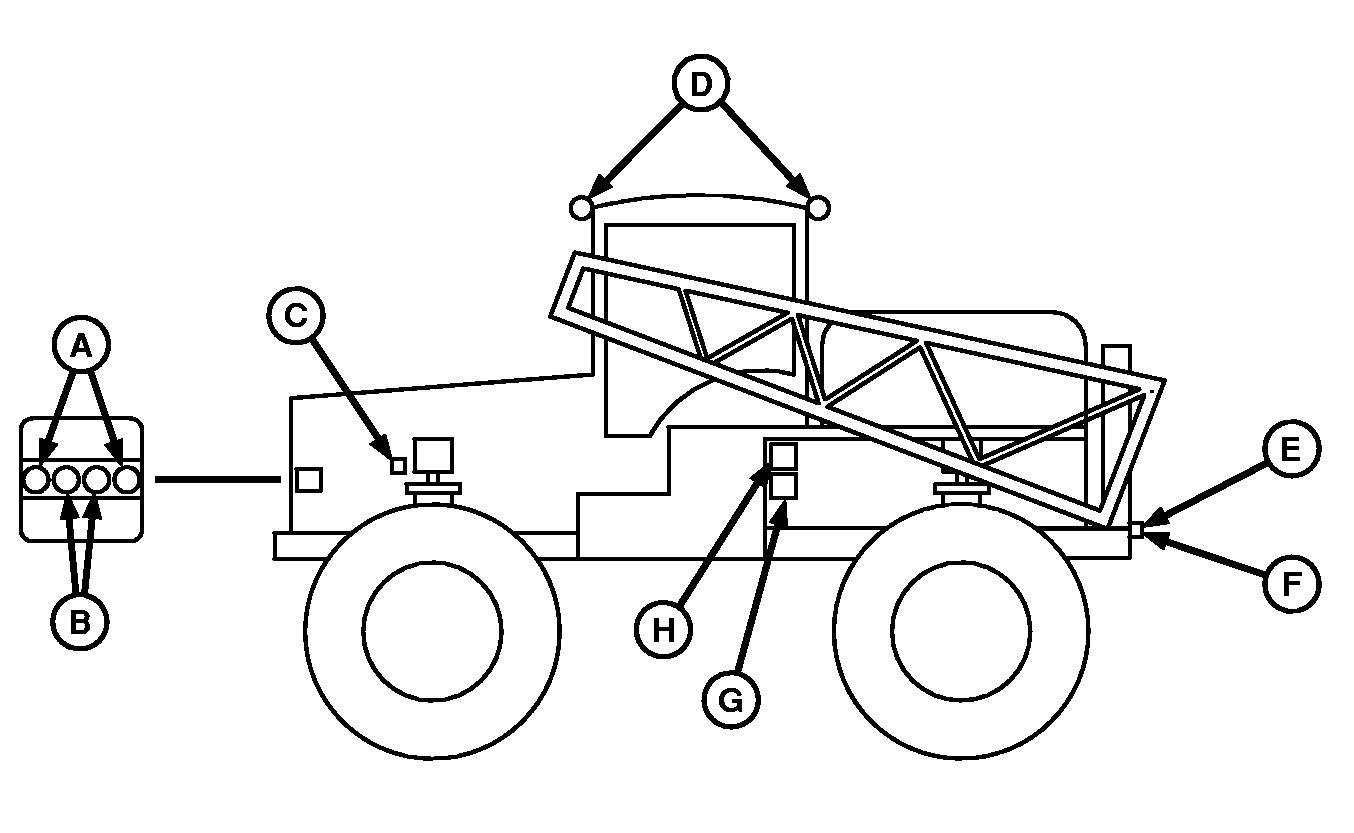

N82196
N82196-UN-06NOV08

A - Hood / Grill Work Lights

B - High / Low Beams

C - Front Caution (Yellow)

D - Roof Floods

E - Rear Caution (Yellow)

F - Tail / Stop (Red)

G - Fill Station

H - Platform Floods

ROAD LIGHT SWITCH
HIGH / LOW SWITCH
LOW BEAM
HIGH BEAM
FILL STATION
ROOF FLOODS
HOOD WORK LIGHTS
PLATFORM FLOODS
OFF
LOW
OFF
OFF
OFF
OFF
OFF
OFF
OFF
HIGH
OFF
OFF
OFF
OFF
OFF
OFF
ROAD
LOW
ON
OFF
OFF
OFF
OFF
OFF
ROAD
HIGH
OFF
ON
OFF
OFF
OFF
OFF
FIELD 1
LOW
ON
OFF
OFF
OFF
ON
ON
FIELD 1
HIGH
OFF
ON
OFF
OFF
ON
ON
FIELD 2
LOW
ON
OFF
ON
ON
ON
ON
FIELD 2
HIGH
OFF
ON
ON
ON
ON
ON
DELAY
LOW
OFF
OFF
ON
ON
OFF
OFF
DELAY
HIGH
OFF
OFF
ON
ON
OFF
OFF

ROAD LIGHT SWITCH
WARN SWITCH
TURN SIGNAL
REAR TAIL (RED)
FRONT / REAR CAUTION
OFF
OFF
OFF
OFF
OFF
OFF
OFF
ON
OFF
ON T
OFF
ON
OFF
OFF
ON W
OFF
ON
ON
OFF
ON T
ROAD
OFF
OFF
ON
ON W
ROAD
OFF
ON
ON
ON T
ROAD
ON
OFF
ON
ON W
ROAD
ON
ON
ON
ON T
FIELD 1
OFF
OFF
OFF
OFF
FIELD 1
OFF
ON
OFF
ON T
FIELD 1
ON
OFF
OFF
ON W
FIELD 1
ON
ON
OFF
ON T
FIELD 2
OFF
OFF
OFF
OFF
FIELD 2
OFF
ON
OFF
ON T
FIELD 2
ON
OFF
OFF
ON W
FIELD 2
ON
ON
OFF
ON T
DELAY
OFF
OFF
OFF
OFF
DELAY
OFF
ON
OFF
ON T
DELAY
ON
OFF
OFF
ON W
DELAY
ON
ON
OFF
ON T

ON T—Indicates that light is on when turn signal switch is on.

ON W—Indicates that light is on when hazard switch is on or when light switch is in road position.

Brake lights are independent of turn or light switches. With key in “Run” position, brake lights will illuminate when the service brake is pressed or the machine decelerates at a rate of 2 mph per second or greater.

OUO6092,0000271-19-20091013
