Heater

N82193-UN-03NOV08

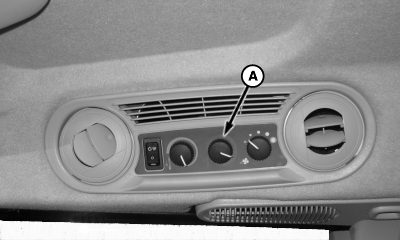

A - Heater Temperature Control

Heating is infinitely variable by means of the heater temperature control (A). To increase heating effect, turn control knob clockwise. Set the fan and louvers to the desired position.

For best heating results, open the two front air louvers half-way and position them in a 45° to 55° angle to the front/down. Close the center and rear air louvers.
