Solution Strainers

N82348-UN-13NOV08

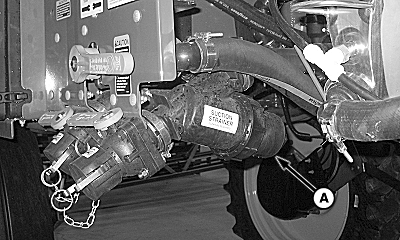

Fill Strainer-Optional

N82349-UN-13NOV08

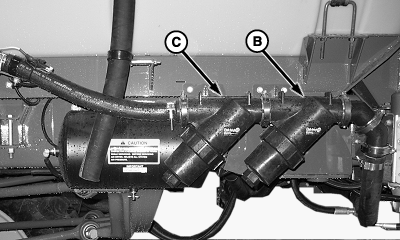

Boom Supply Line Strainers

A - Fill Strainer 30 Mesh (Optional)

B - Boom Supply Line Strainer- 50 Mesh (Standard)

C - Boom Supply Line Strainer- 80 Mesh (Optional)

Strainers (A-C) are used to help keep dirt and debris from entering and damaging the solution pump, nozzles, and other components. Strainer screens should be removed and cleaned to maintain solution flow.

NOTE: With dual strainers, the finer screen (typically 80 mesh) goes into rear strainer housing (C).
