Priming Solution Pump with Rinse Tank to Fill When Nurse Tank Fluid Level Even or Below Sprayer Pump

NOTE: Sprayer pump may not pull solution into solution tank if fluid level in nurse tank is below solution pump on machine.

1.
   N81319-UN-15JAN09


   N82351-UN-15JAN09

   A - Rinse Tank Fill Valve

   B - Solution Pump Switch

   Fill rinse tank with clean water using rinse tank fill valve (A). (See Filling Rinse Tank Using Left-Hand Rinse Fill in this section.)

---




2. Operate engine at low idle.

3. Turn off solution pump switch (B).

4. CAUTION: Quik-Fill valve (A) can contain hazardous materials which can poison causing serious injury or death to you or others. Before removing Quik-Fill cap (B), make sure Quik-Fill valve is turned off.

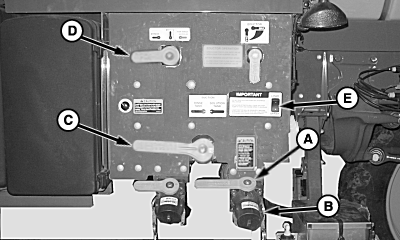

   N81321-UN-15JAN09

   A - Quik-Fill Valve

   B - Cap

   C - Suction Valve

   D - Pressure Bypass/Rinse Valve

   E - Remote Solution Pump Switch

   Verify Quik-Fill valve is closed.

---




5. Open lock levers and remove cap (B).

6. Connect nurse tank fill hose to Quik-Fill adapter and close lock levers.

7. Turn suction valve (C) to “RINSE” position momentarily to prime pump.

8. Turn pressure bypass/rinse valve (D) to “BYPASS” position.

9. Move remote solution pump switch (E) to “LOAD” position.

   NOTE: When using remote solution pump switch (F), pump is designed to come up to operating speed slowly. Engine speed will automatically increase to 1800 rpm.

10. Open Quik-Fill valve.

11. Draw water from rinse tank for approximately 5 to 10 seconds.

12. With solution pump running, turn suction valve to “Closed” (straight up) position.

13. IMPORTANT: Failure to perform the following steps in order can create pressure spikes in the solution system that may cause pressure transducer failure and other component damage.

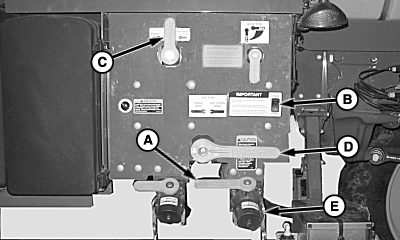

    N81322-UN-15JAN09

    A - Quik-Fill Valve

    B - Remote Solution Pump Switch

    C - Pressure Bypass/Rinse Valve

    D - Suction Valve

    E - Cap

    After solution tank has filled, close Quik-Fill valve (A).

---




14. Move remote solution pump switch (B) to “SPRAY” position.

15. Turn pressure bypass/rinse valve (C) to “SPRAY” position.

16. Turn suction valve (D) to “SOLUTION TANK” position.

17. Remove fill hose from Quik-Fill adapter and replace cap (E).
