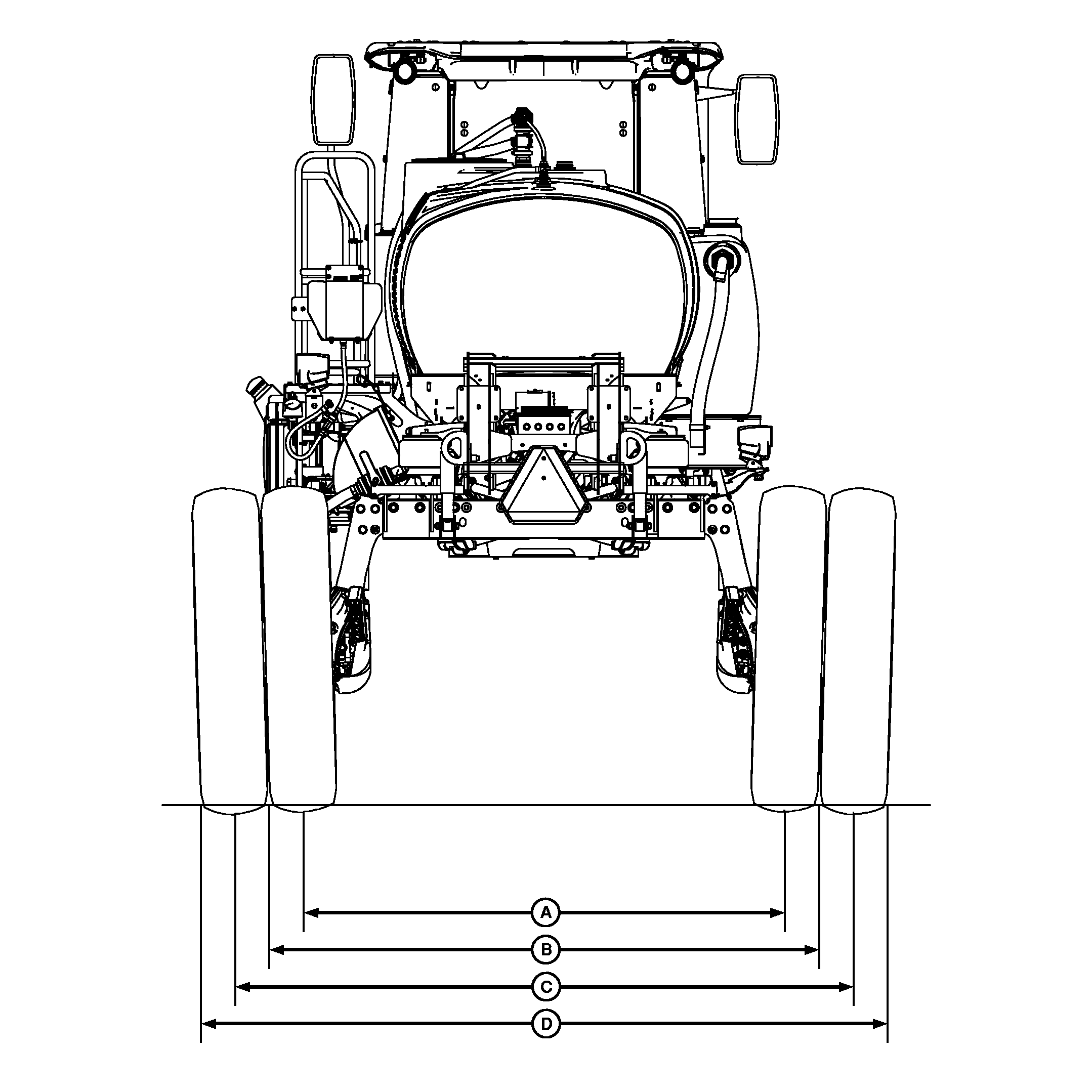

Dimensions—All Machines
N83545-UN-12MAR09
A - Narrowest Tread Setting
B - Widest Point on Wheels at Narrow Setting (planetary hub) 1
C - Widest Tread Setting
D - Widest Point on Wheels at Widest Setting (planetary hub) 1
Dimensions | |||
|---|---|---|---|
Item | Description | Wide Machine | Narrow Machine |
A | Narrowest Tread Setting | 2286 mm (90 in.) | 1828.8 mm (72 in.) |
B | Widest Point of Wheels at Narrowest Setting (Planetary Hub) | 2819 mm (111 in.) | 2362 mm (93 in.) |
C | Widest Tread Setting | 3048 mm (120 in.) | 2235 mm (88 in.) |
D | Widest Point of Wheels at Widest Setting (Planetary Hub) | 3541 mm (141 in.) | 2769 mm (109 in.) |
1 Equipped with standard tires. | OUO6092,00002B6-19-20091116 |
