Identification Numbers

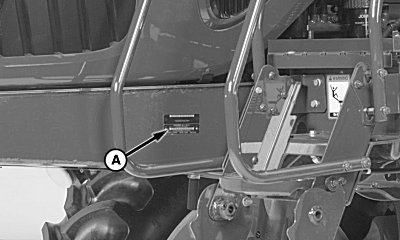

N84412-UN-28APR09
A - Product Identification Number
Copy these pages to record component serial numbers. This will help when acquiring service parts.
The product identification number (A) is on left-hand side of frame.
Product Identification Number _________________________

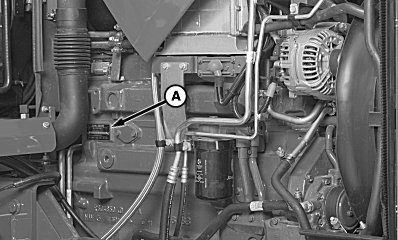

N84578-UN-28APR09
A - Engine Serial Number
The engine serial number (A) is on the right-hand side of engine block behind oil filter.Engine Serial Number _______________________________

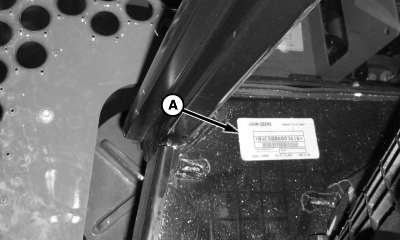

N85433-UN-30JUN09
A - Cab Serial Number
The cab serial number (A) is located under cab floor mat near door.Cab Serial Number _________________________________

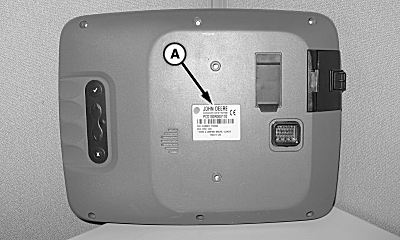

N74920-UN-24JAN07
A - Monitor Serial Number
The monitor serial number is located on the back of the monitor.Monitor Serial Number ________________________________

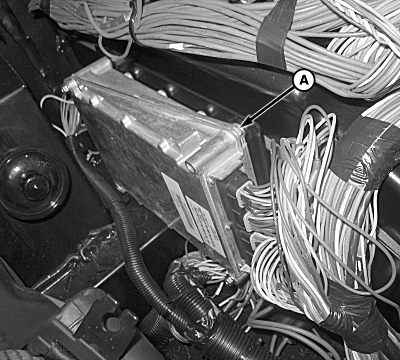

N85434-UN-30JUN09
A - Chassis Control Unit
The chassis control unit serial number is on the unit located in left cab console.Chassis Control Unit Serial Number _______________________________

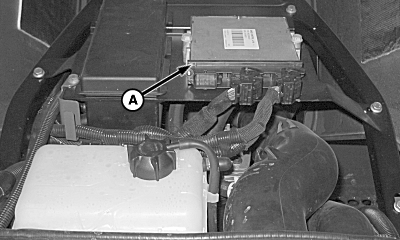

N84579-UN-28APR09
A - Engine Control Unit
The engine control unit serial number is located on the unit on top of the engine.Engine Control Unit Serial Number _______________________________

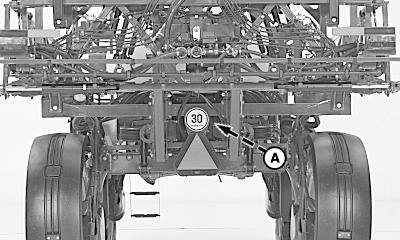

N84580-UN-28APR09
A - Boom Controller
The boom controller serial number is located on the unit on the rear of the machine below the boom lift hardware.Boom Hydraulic Controller Serial Number _______________________________
OUO6092,00002B7-19-20091116 |
