Lubricate Center Boom Section

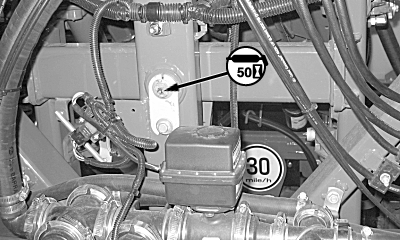

Pivot Assembly Connection Pin

N84210-UN-17APR09

One Fitting

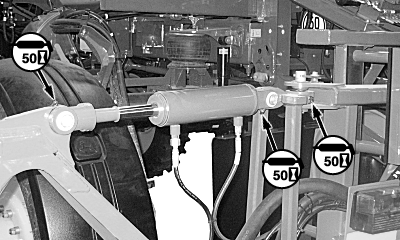

Upper Pivot and Tilt Cylinder

N87290-UN-30NOV09

Three Fittings

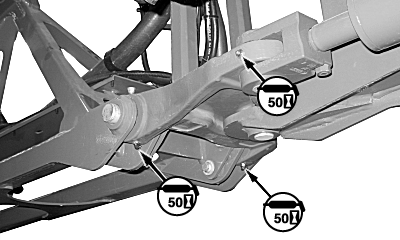

Lower Pivot and Rod End of Fold Cylinder

N87291-UN-30NOV09

Three Fittings

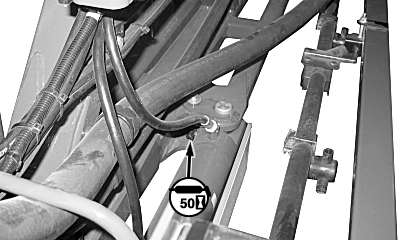

Inner Wing Fold Cylinder

N87292-UN-30NOV09

One Fitting
